Configuration Options

Door Surfaces and Cabin Walls

Powder coating

P-7032 (Standard)

P-1015

P-1018

P-1019

P-1034

P-3004

P-3020

P-5011

P-5012

P-6005

P-6021

P-7004

P-7010

P-7012

P-7023

P-8023

P-9005

P-9006

P-9016

Cladding in stainless steel

Leather grain
E-01

Linen grain
E-02

Grit cut
E-03

Polished
E-04

Polished linen
E-05

Champagne cut
E-11

Brass cut
E-12

Bronze mirror
E-13

Gold mirror
E-14

Crystal mirror
E-15

All stainless steel coverings and sheets are available in the alloys AISI 304 (WNR 1.4301) The surfaces leather grain, linen and grain
cut are also available in AISI 441 (WNR 1.4509) and grain cut also available in AISI 316 (WNR 1.4401) (e.g. E-01-44 or E-01-31).

The colours are based on RAL shades. Other special colours for powder coatings are available on request in nearly all shades.

Cabin Walls

Zinc sheet

Plain zinc
Z-00

Laminated zinc sheets

Plain zinc
Z-00

Plain zinc
Z-00

Plain zinc
Z-00

Plain zinc
Z-00

Plain zinc
Z-00

Plain zinc
Z-00

Plain zinc
Z-00

Plain zinc
Z-00

Cabin ceilings and lighting

Fixed base ceilings

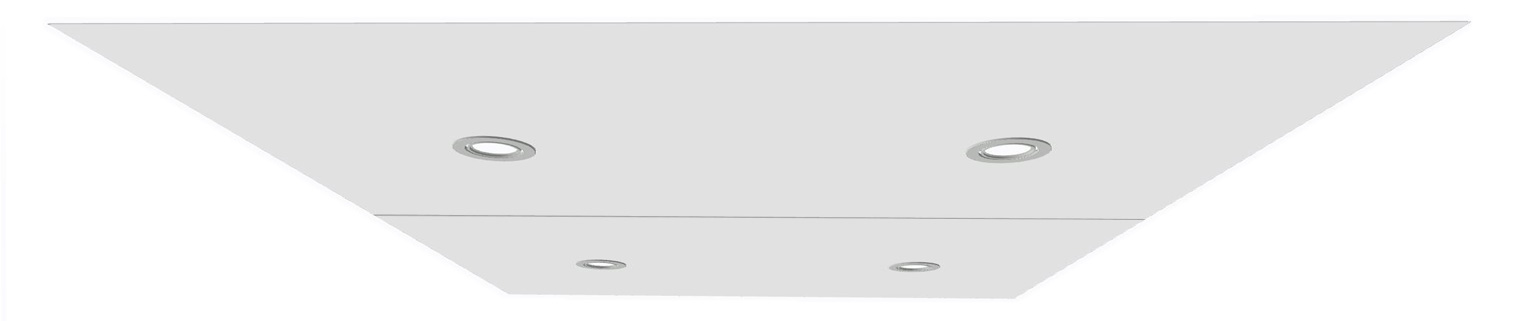

LED spots (L-01)

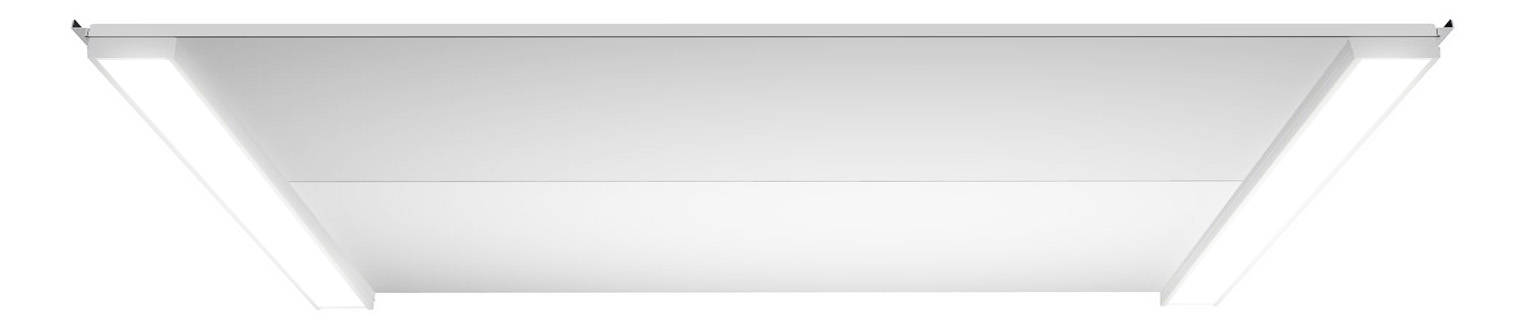

Light rails (L-02)

Suspended hinged ceilings

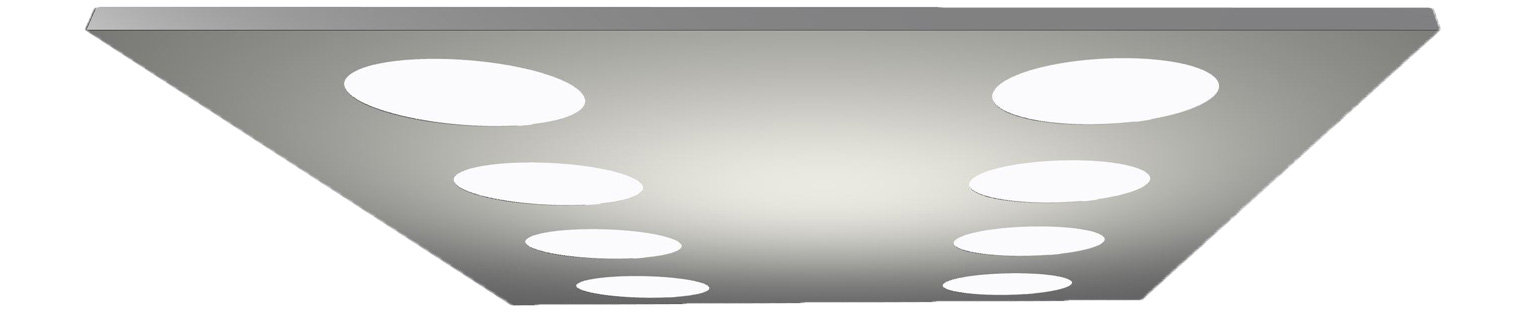

Round light fields 200 mm (L-11)

Runde Leuchtfelder 200 mm (L-11)

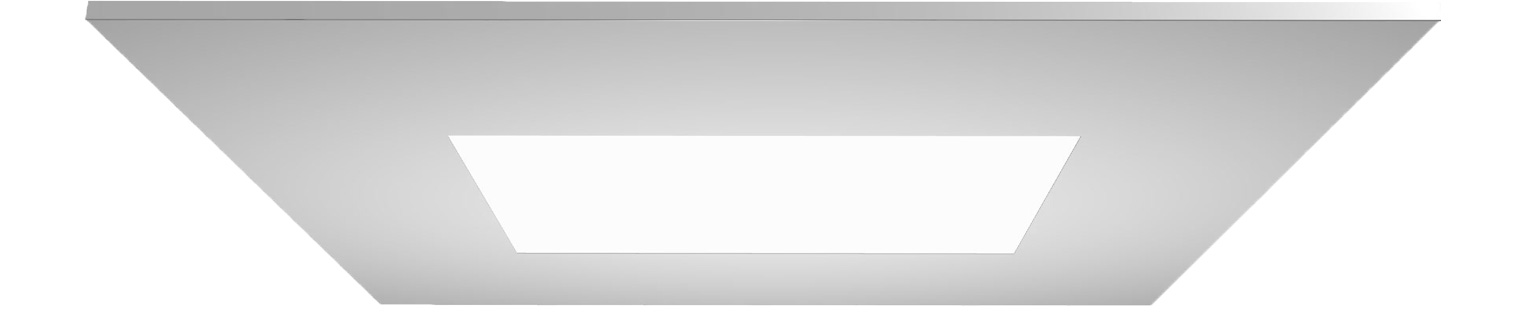

LED panel 600 mm (L-14)

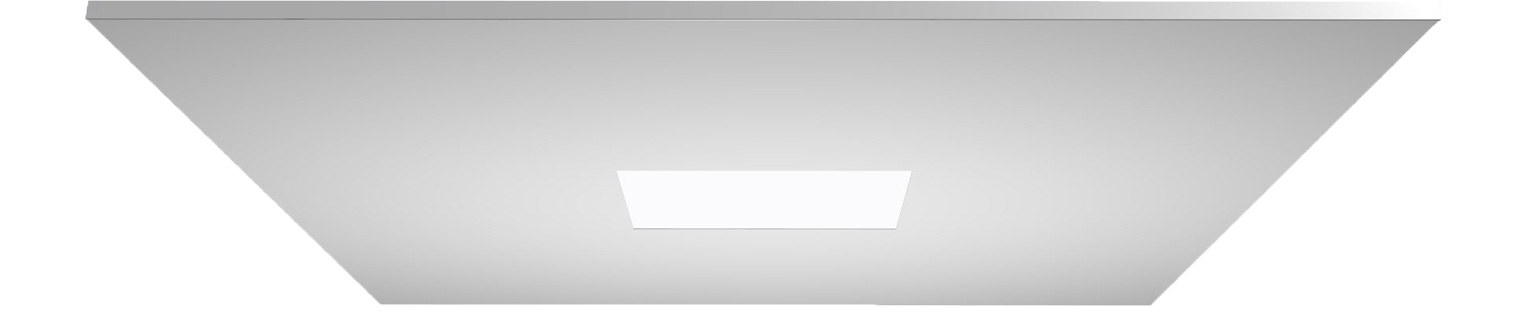

LED panel 300 mm (L-13)

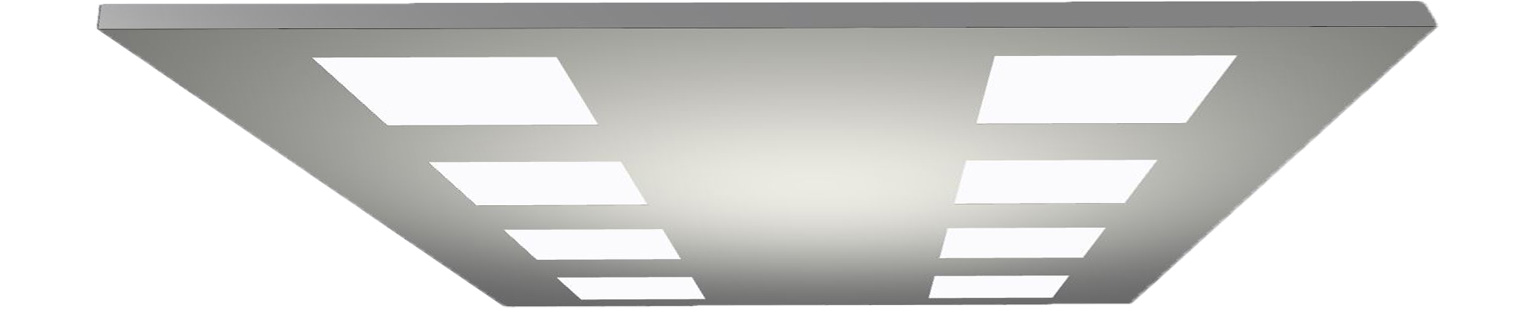

Rectangular light fields 200 mm (L-12)

Suspended fixed ceilings

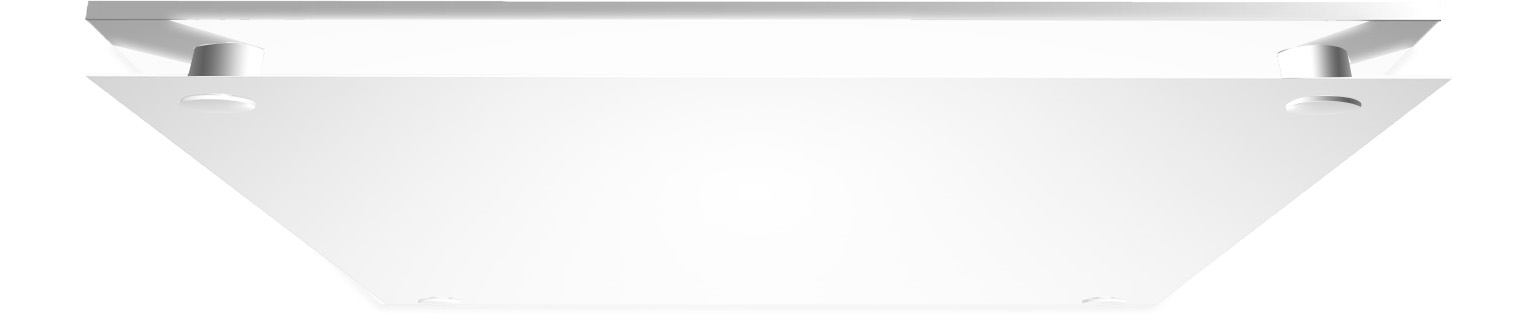

Satin glass ceiling – fixed not hinged (L-21)

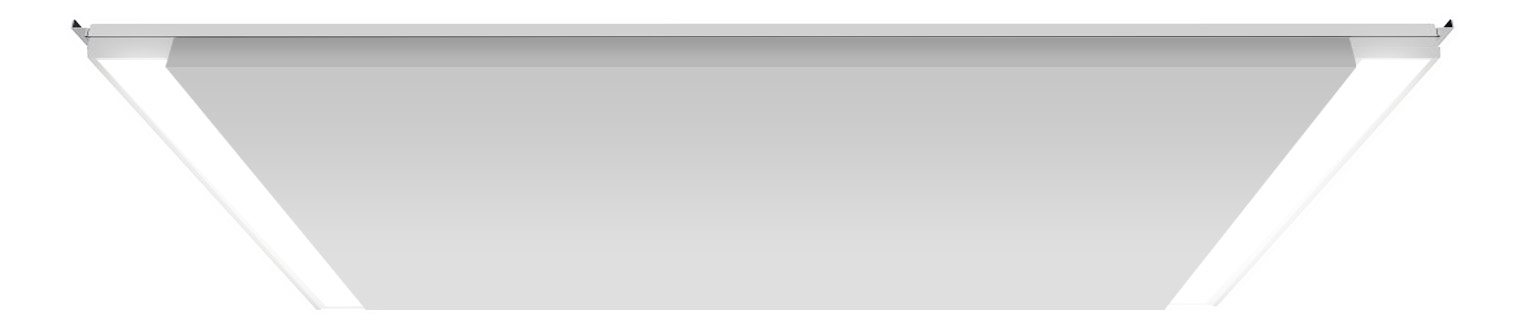

Light rails with suspended ceiling cassette (L-22)

Surface and material options

Sheet steel powder coating white (S-9010)

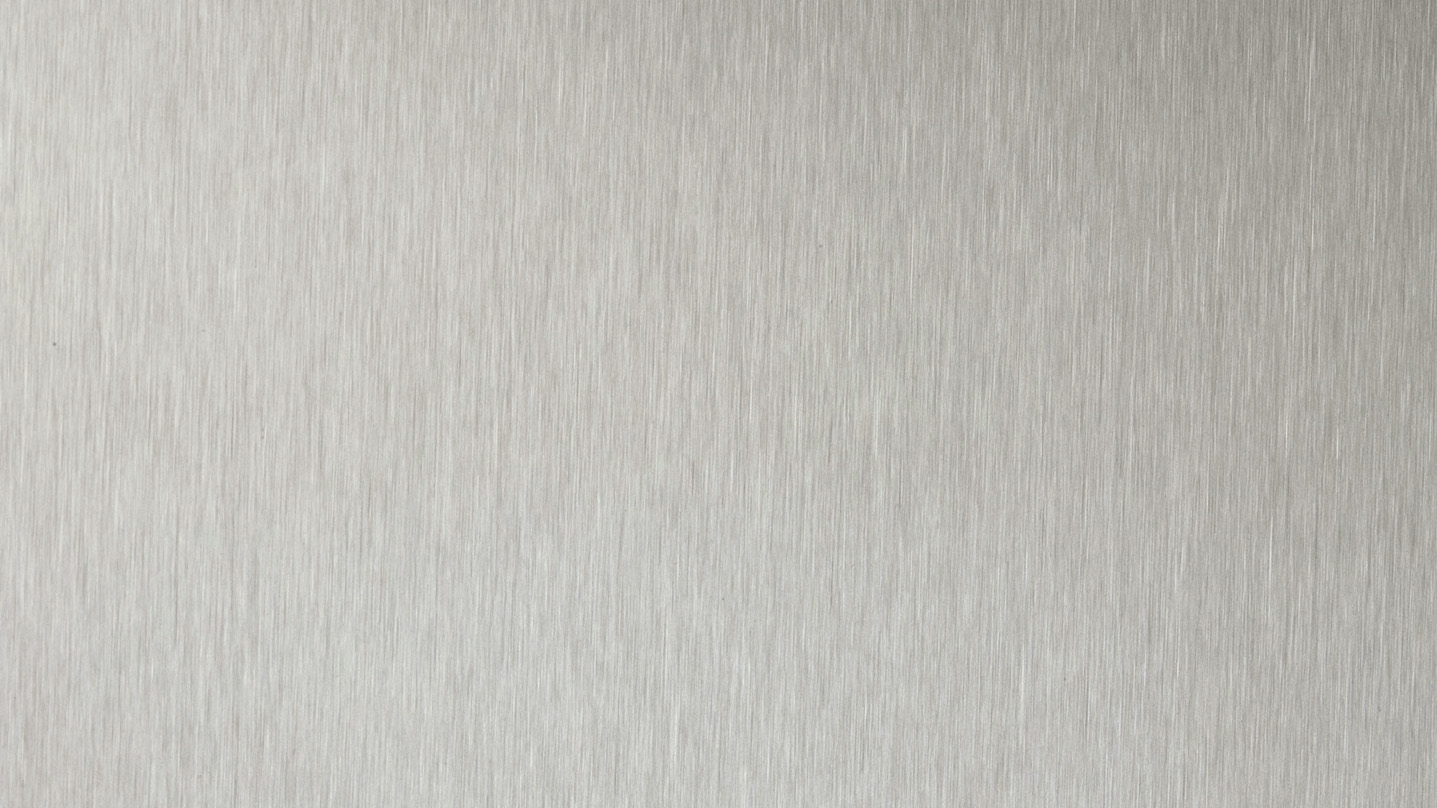

Grid cut stainless steel (E-03)

Polished stainless steel (E-04)

The number of spots and light fields applied varies with the cabin size. Shown are variants of a 630 kg cabin (1,100 × 1,400 mm)

cabin equipment

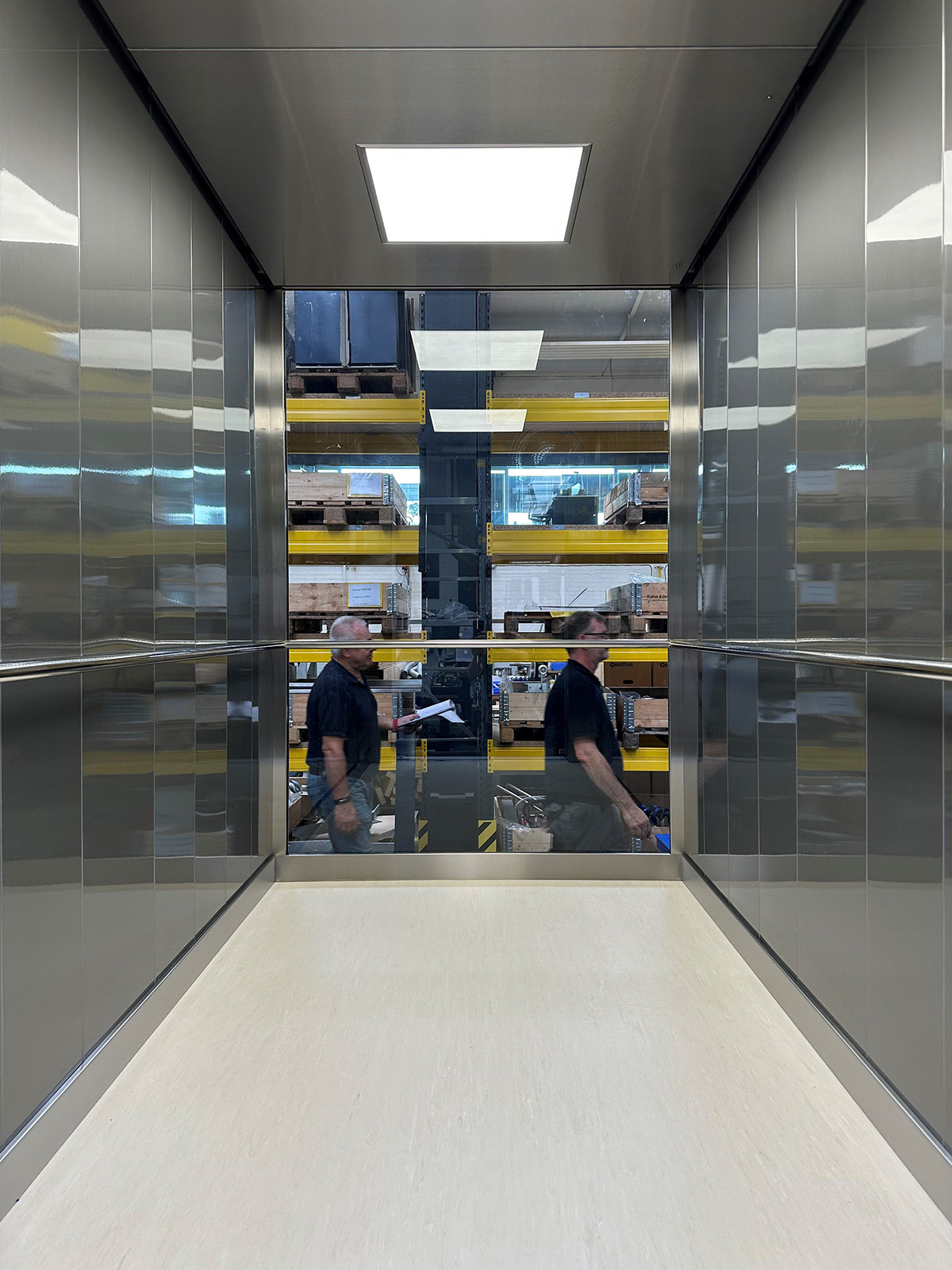

Glass Walls

Framed glass wall made of safety glass
one-, two- or three-sided

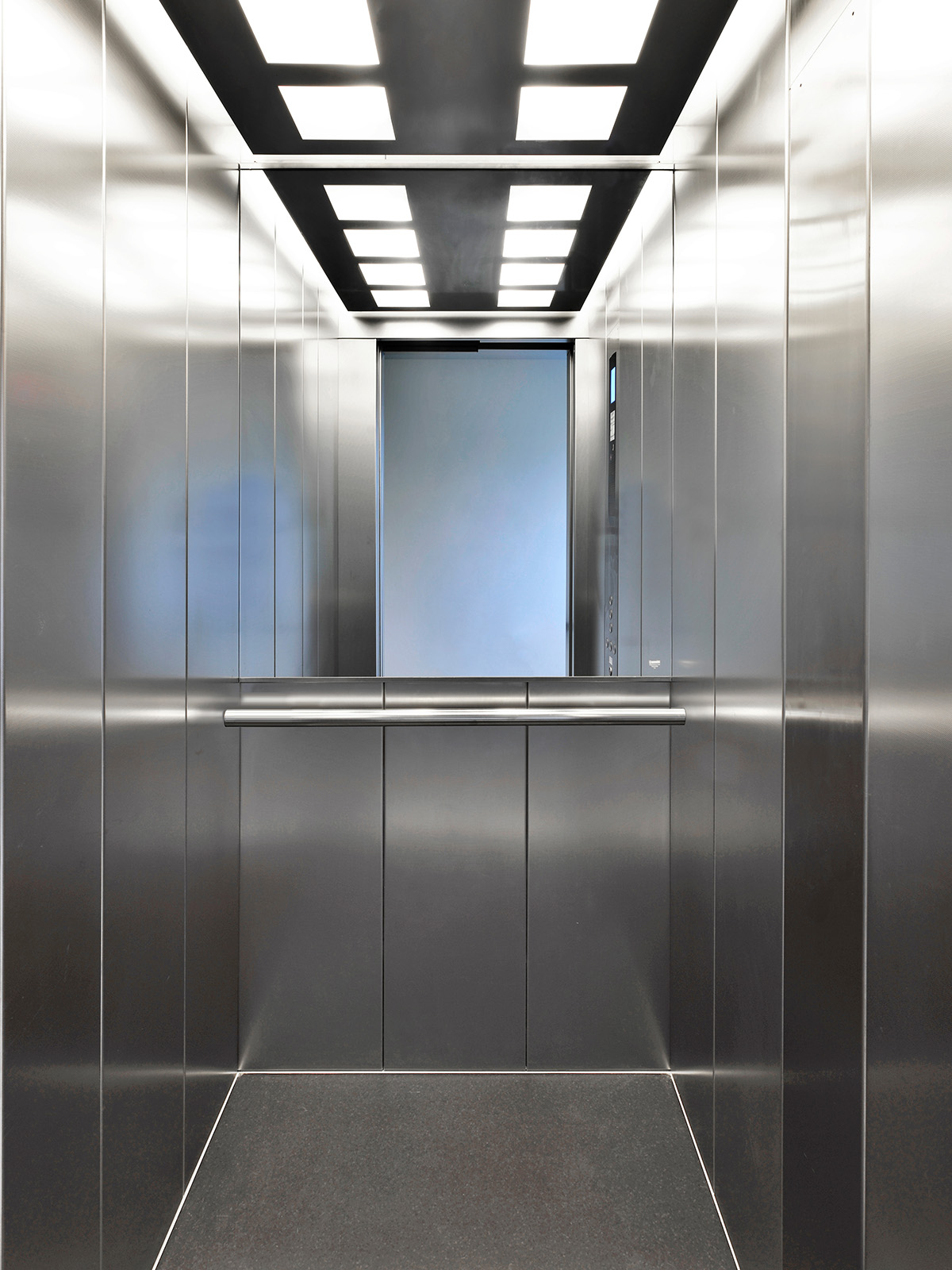

Mirror

Mirror above handrail (optionally at full height)
one-, two- or three-sided

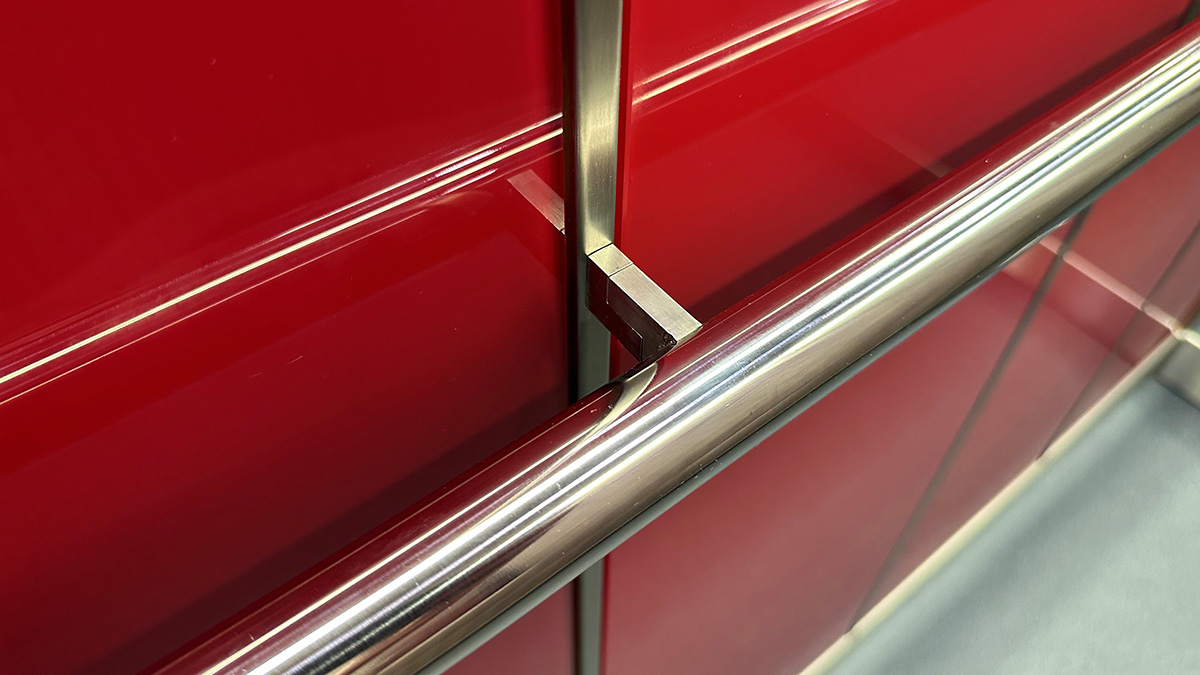

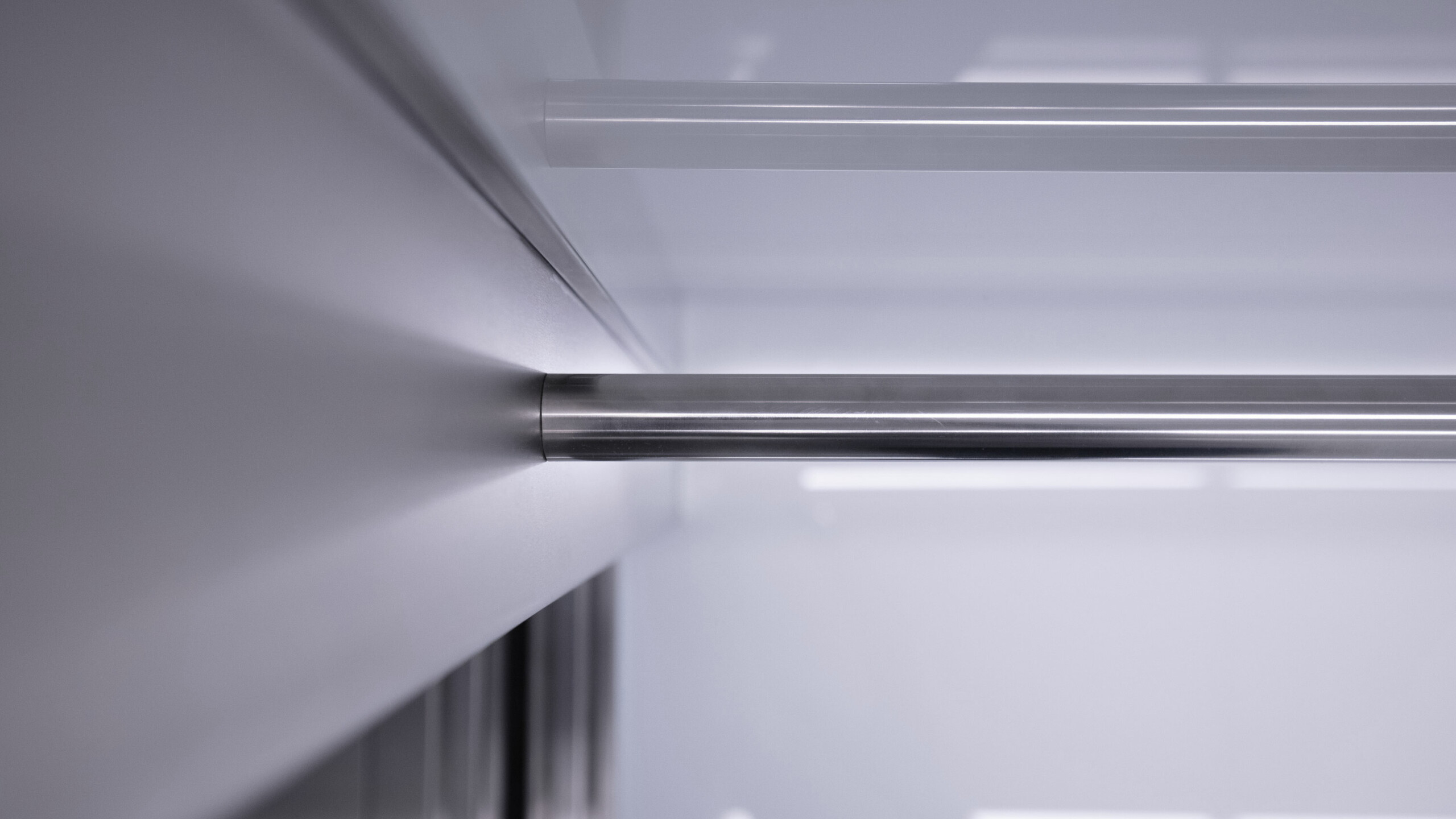

Handrails

Polished stainless steel tube (ø 30 mm) one-, two-, three-sided or over corner

Handrail fastening at the front sides (left picture: over corner)

Handrail holder for lengths over 1,400 mm

Cabin Floors

PVC

Beige
F-01

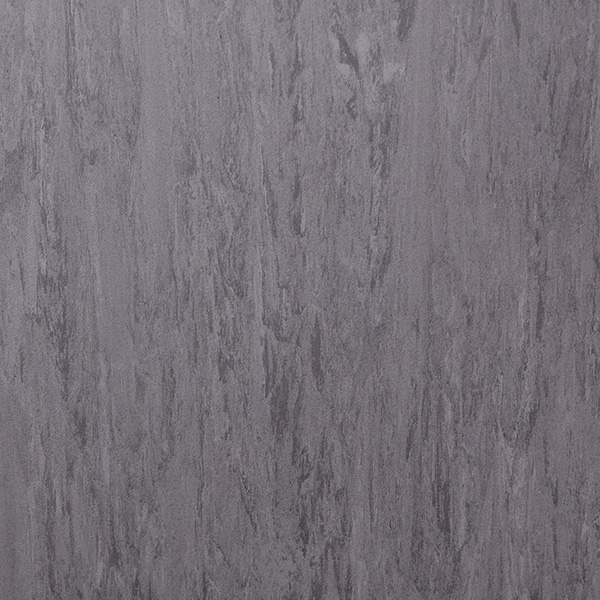

Brown
F-02

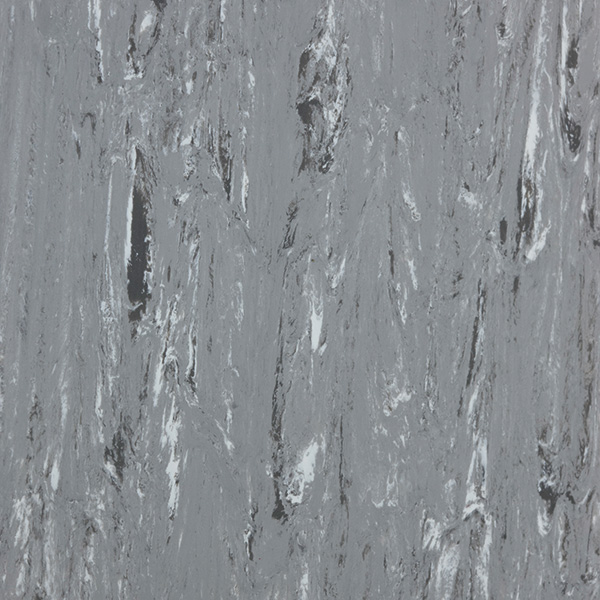

Grey
F-03

Black
F-04

Altro
F-05

Synthetic resin marble

White
F-11

Beige
F-12

Grey
F-13

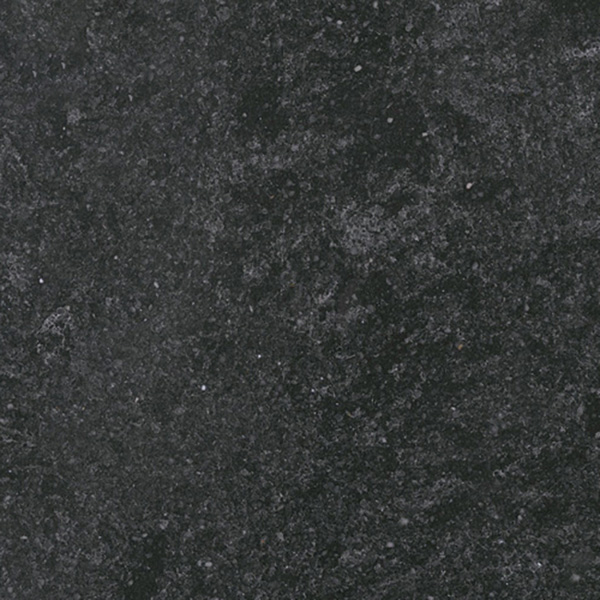

Terrazzo

Black
F-14

Blackan
F-21

Metal

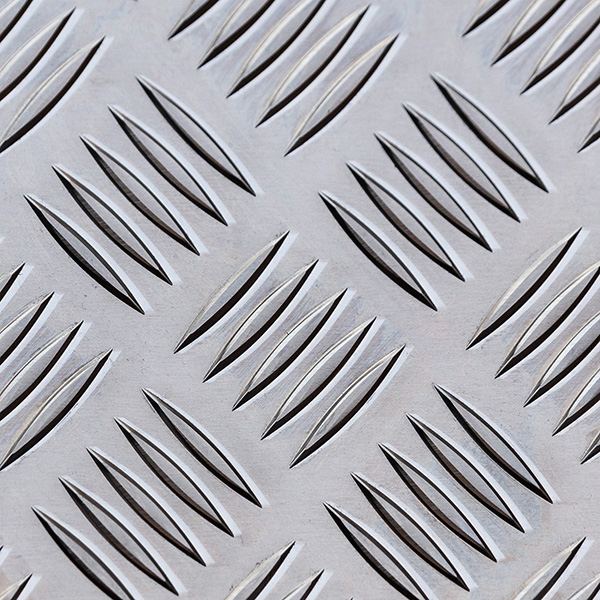

Aluminium quintet
F-41

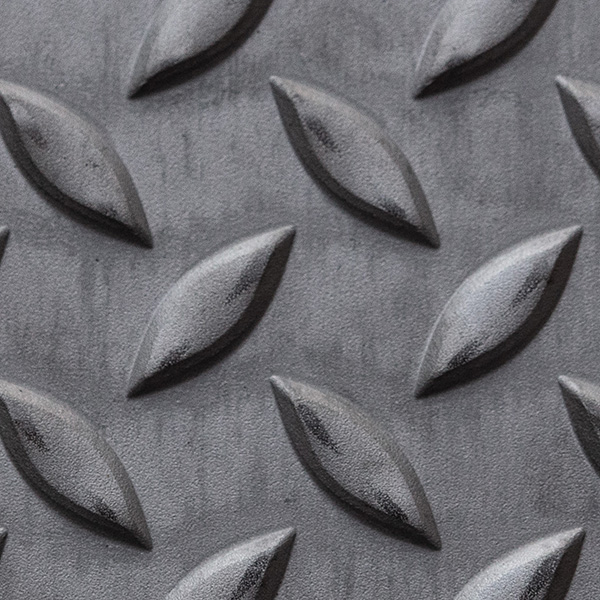

Stainless steel bulp plate
F-42

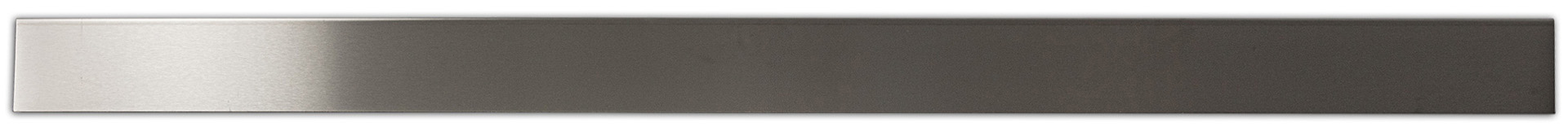

Skirtings

Grid cut stainless steel plate (95 mm) one-, two- or three-sided or over corner

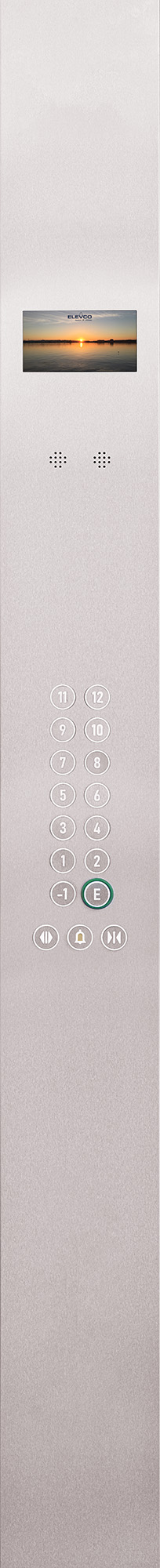

Cabin control panels, buttons & displays

Standard
Material	brushed stainless steel panel with concealed mounting
Dimensions	width 220 mm, floor to ceiling, depth 10 mm
Displays	7,0″ TFT display
Communication unit	intercom between cabin and cotrol system
Certification	Lift certification information in the display without separate engraving panel
Buttons	Floor button / door open / emergency call button / door closed All tactile and with acoustic call acceptance

Options
Key switch	Standard, Kaba or Euro cylinders with optional print
Buttons	Adjustable illumination in white with call acknowlegment in either red, green or blue and acoustic call acceptance
Display	Individual background images
Braille	Braille next to button
Voice announcement	Via loudspeaker in the tableau

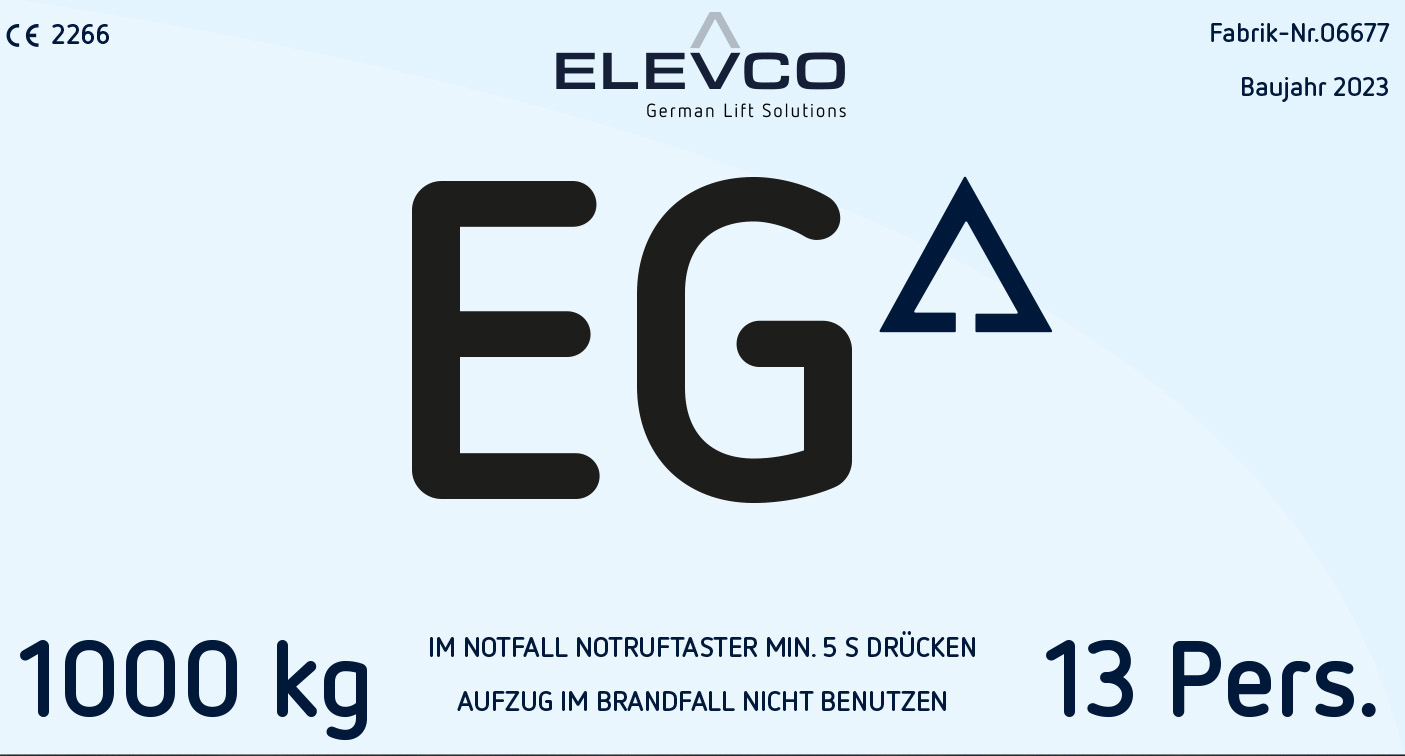

Cabin Display

Standard

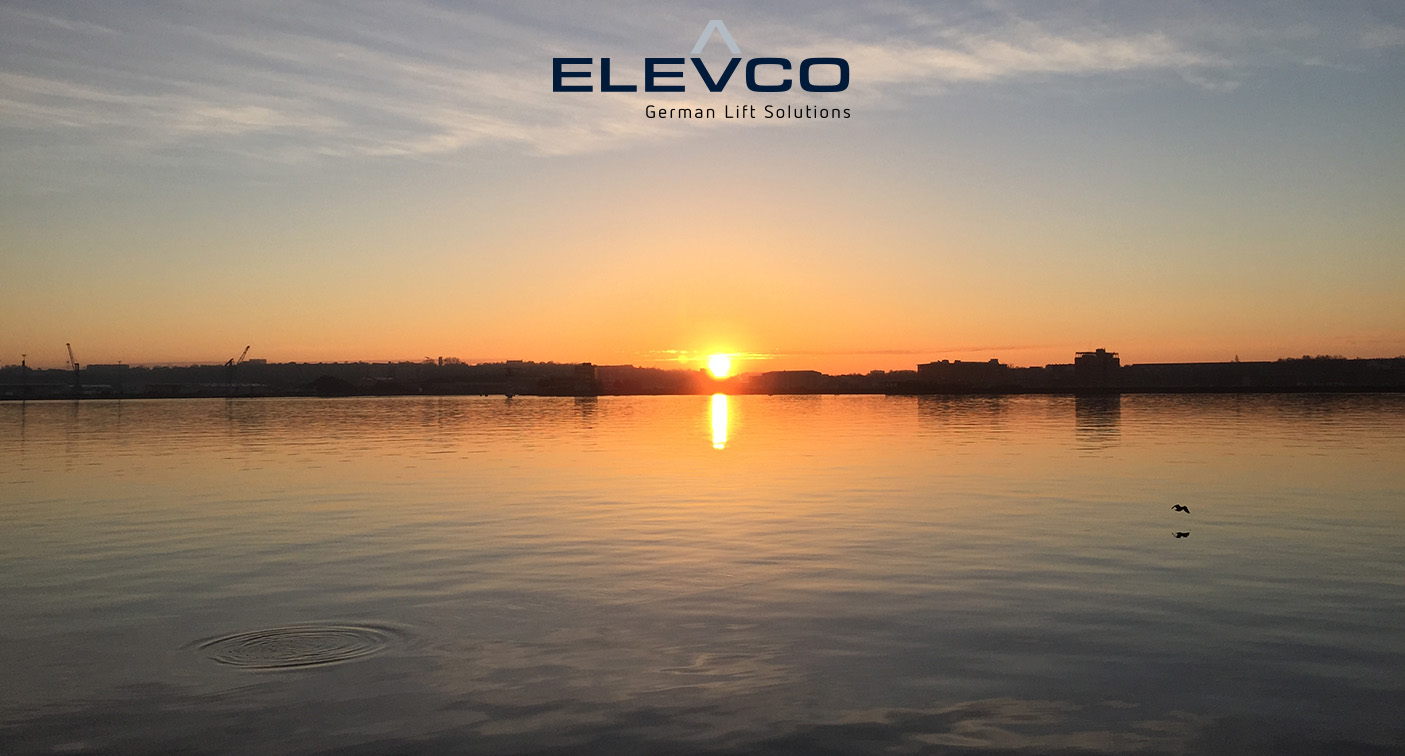

Optional: Individual background images

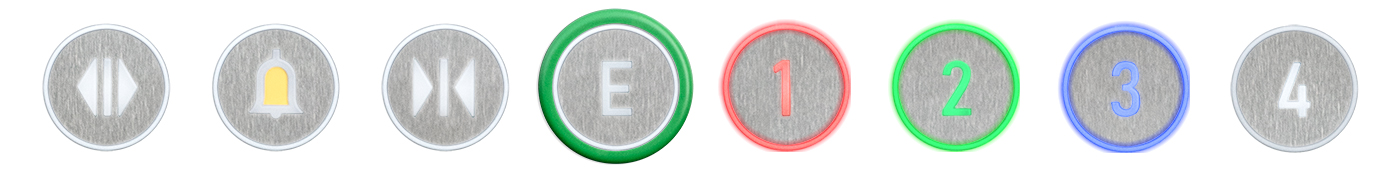

Cabin Push Buttons

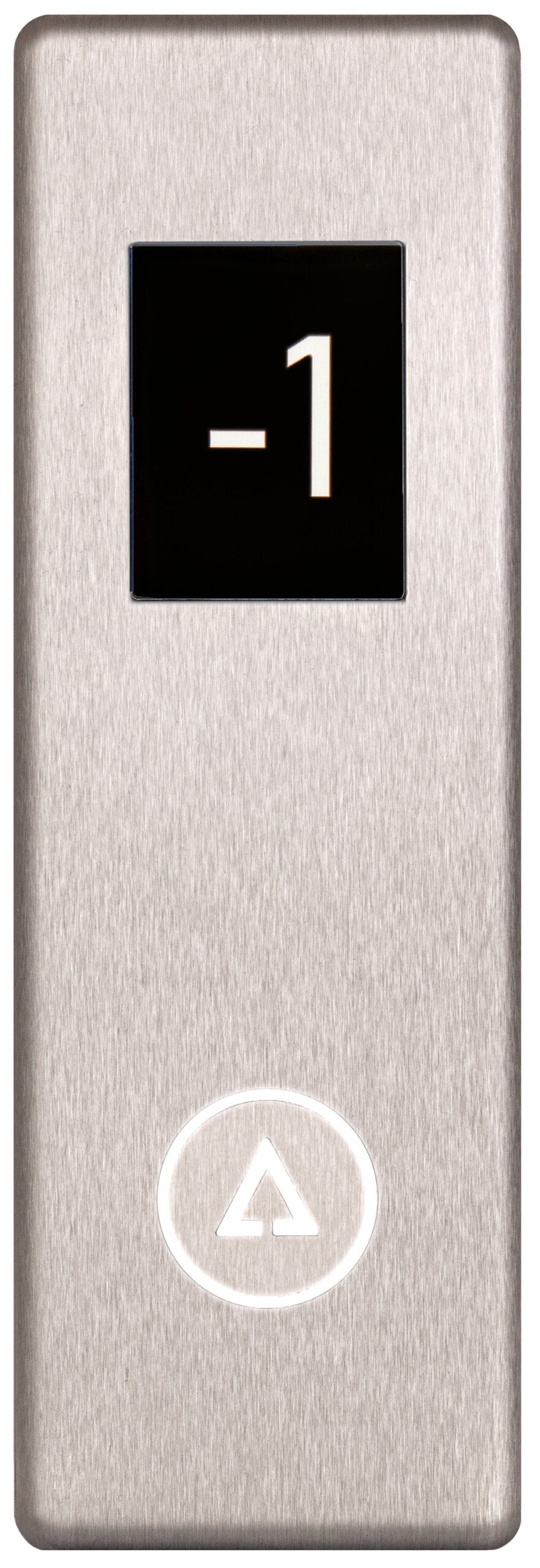

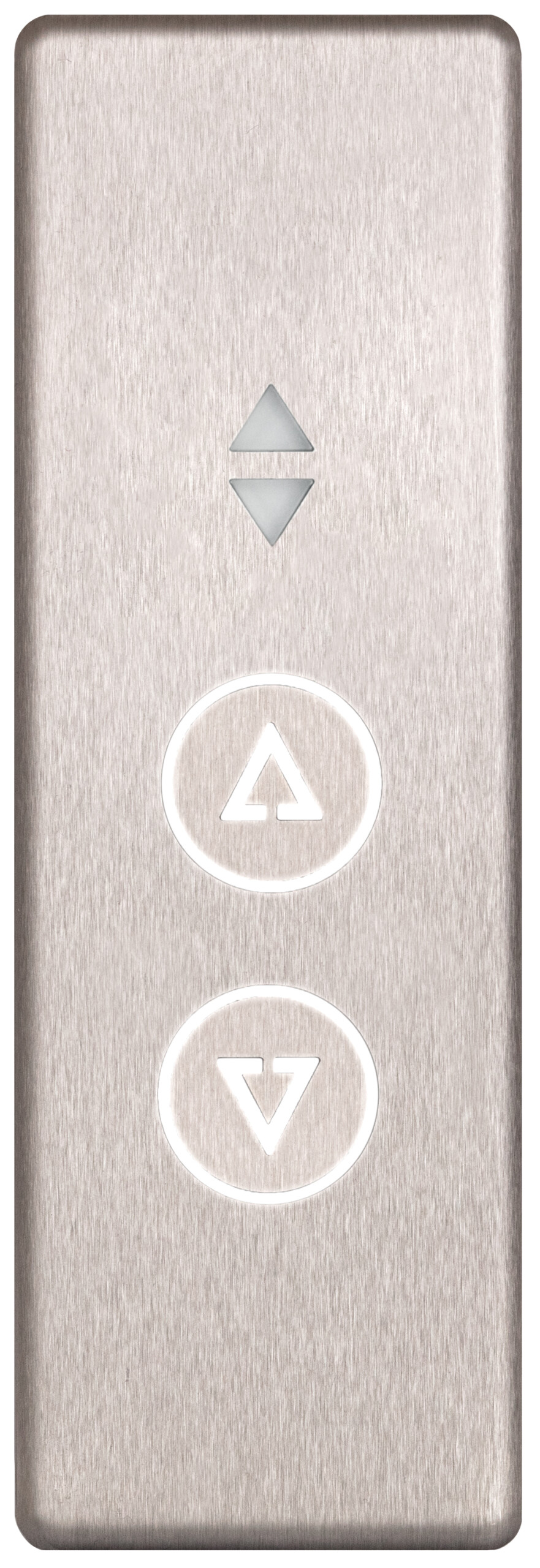

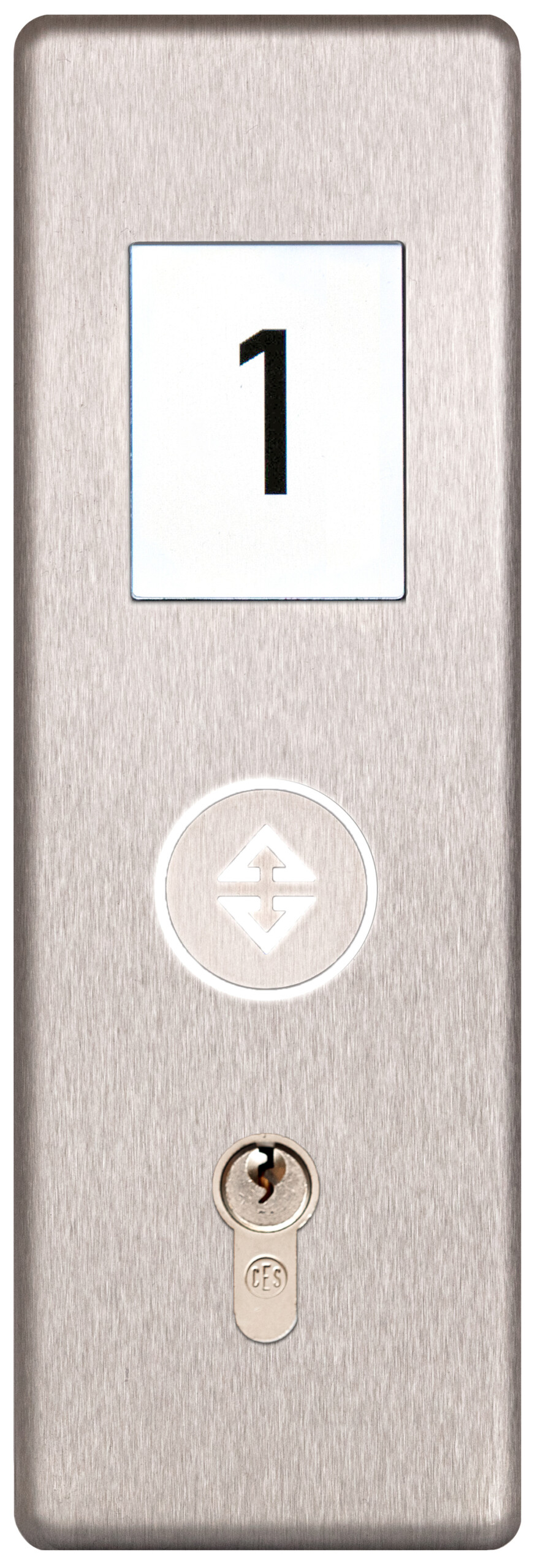

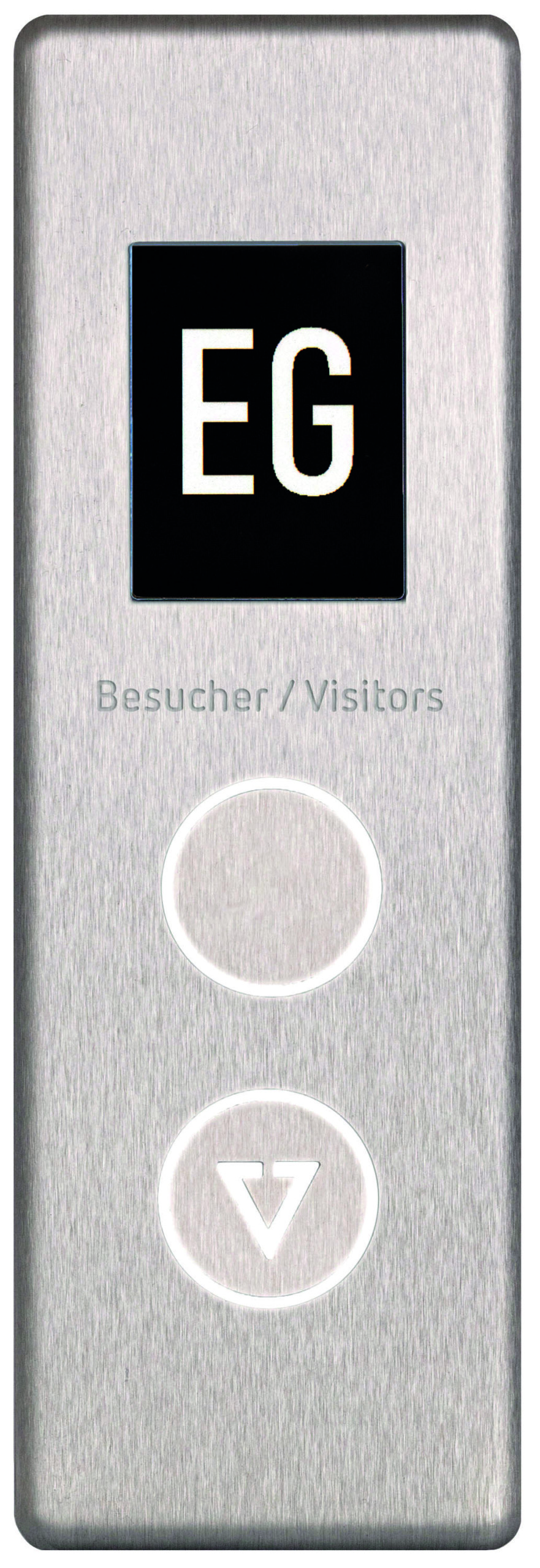

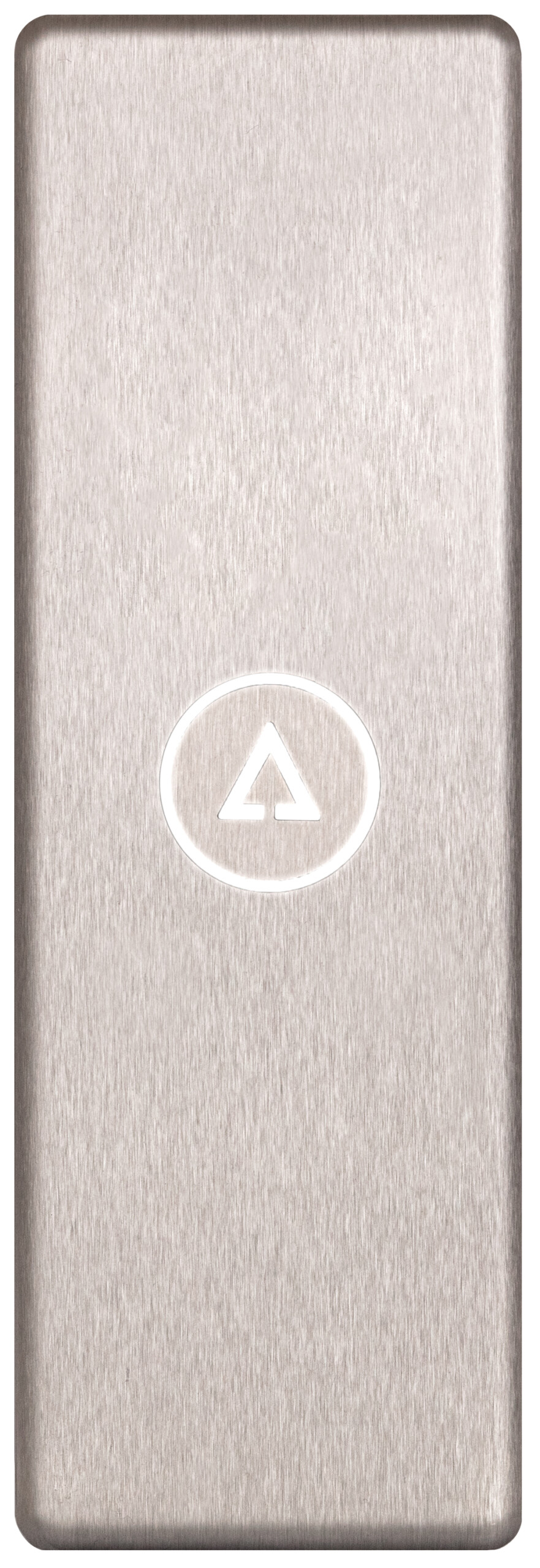

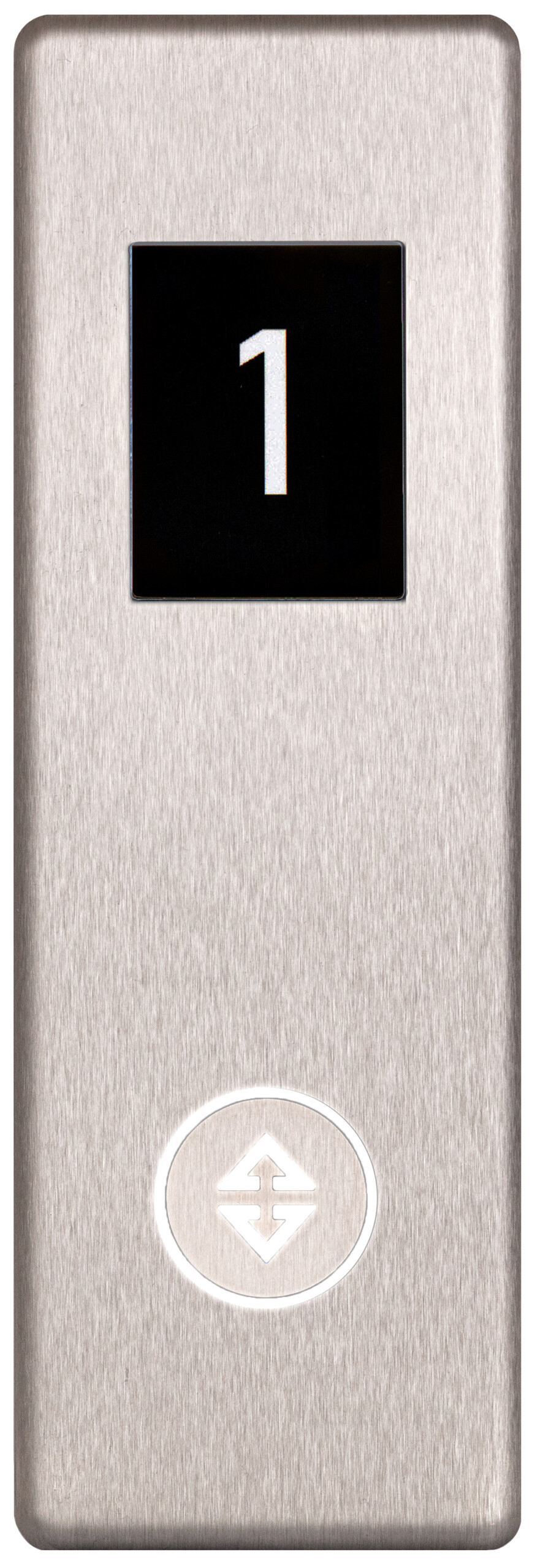

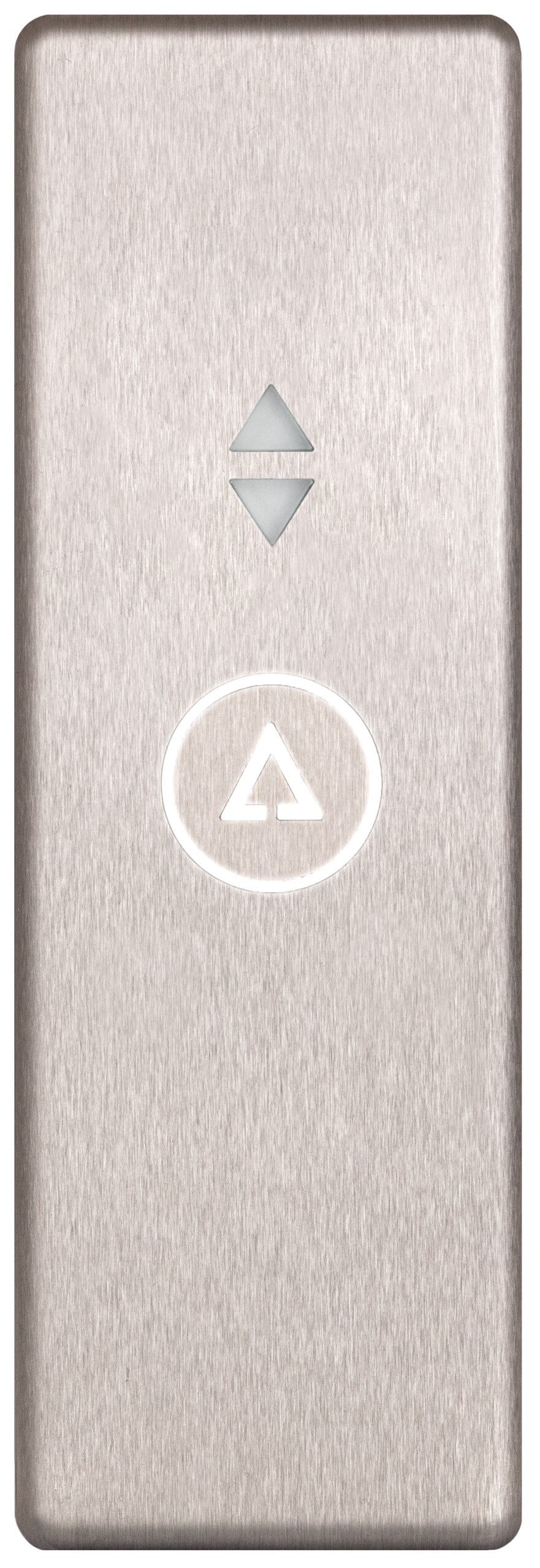

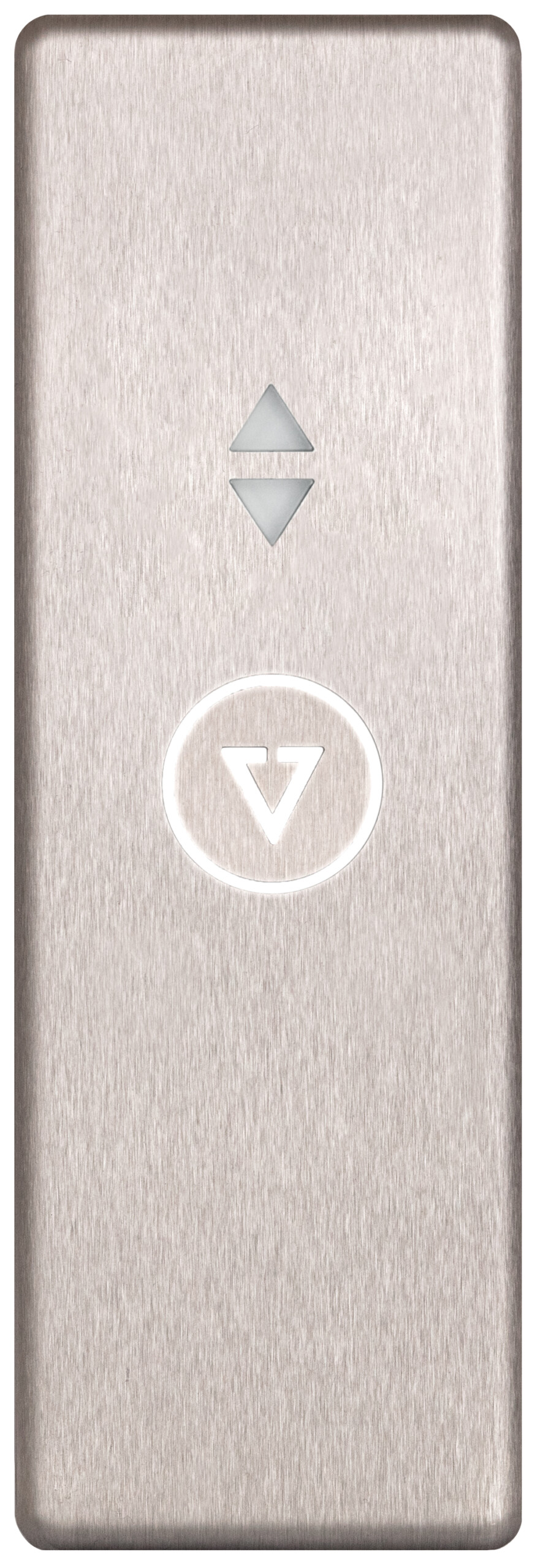

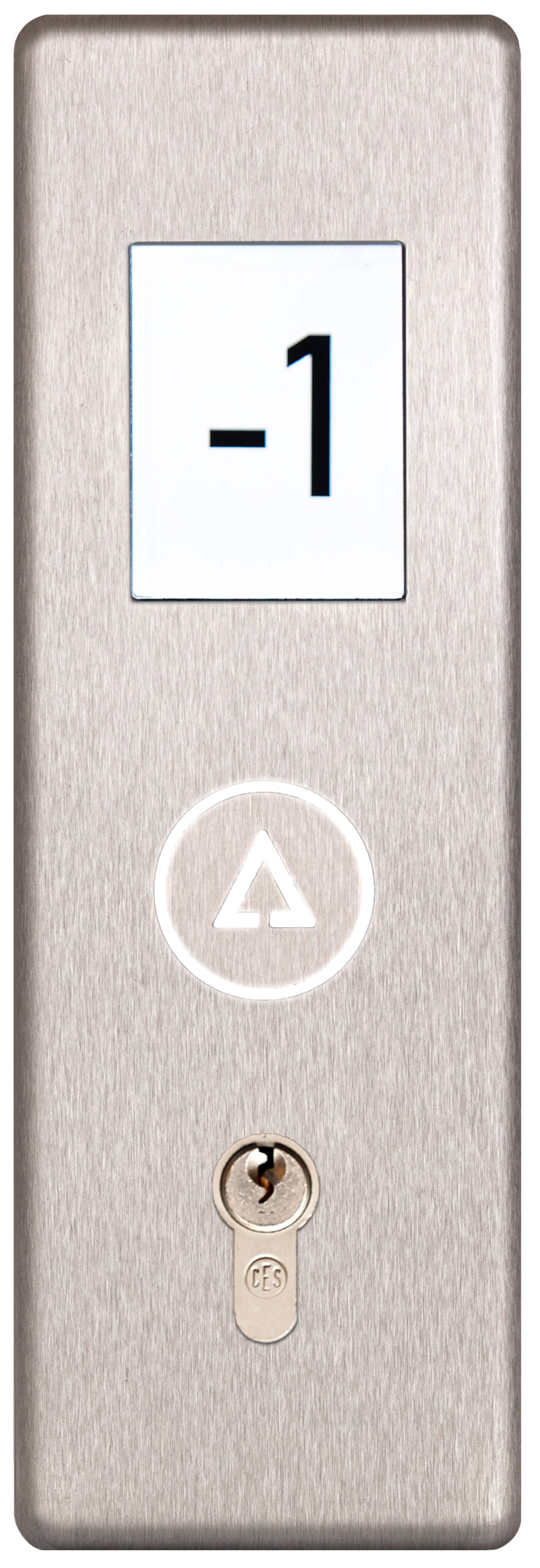

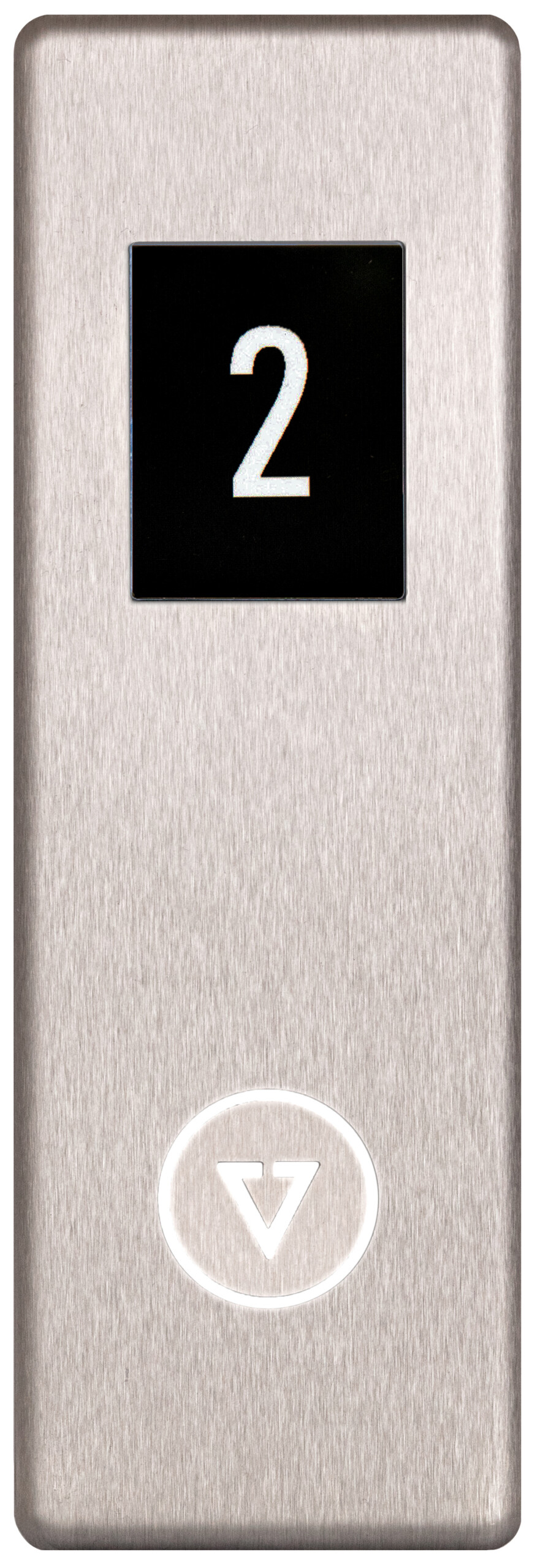

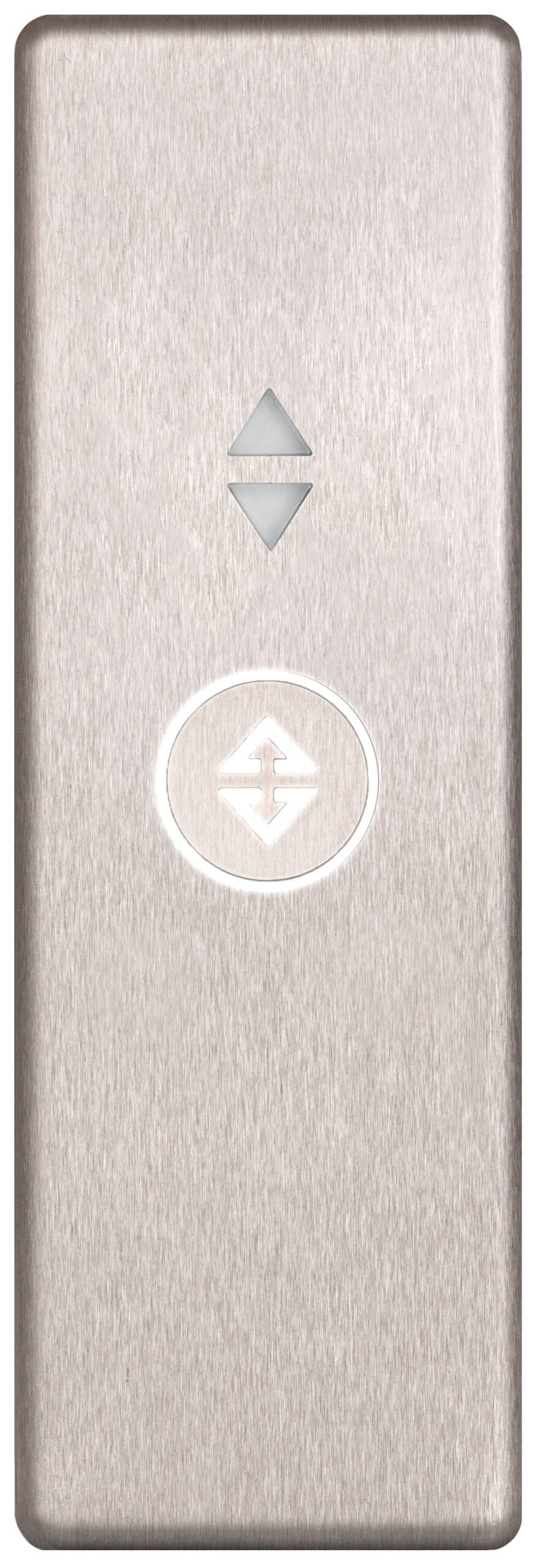

Landing Indicator and Operation Panels

Standard
Material	brushed stainless steel panel with concealed mounting
Dimensions	width 220 mm, floor to ceiling, depth 10 mm
Display	7.0″ TFT display

Standard
Control	Two-push-button collective control

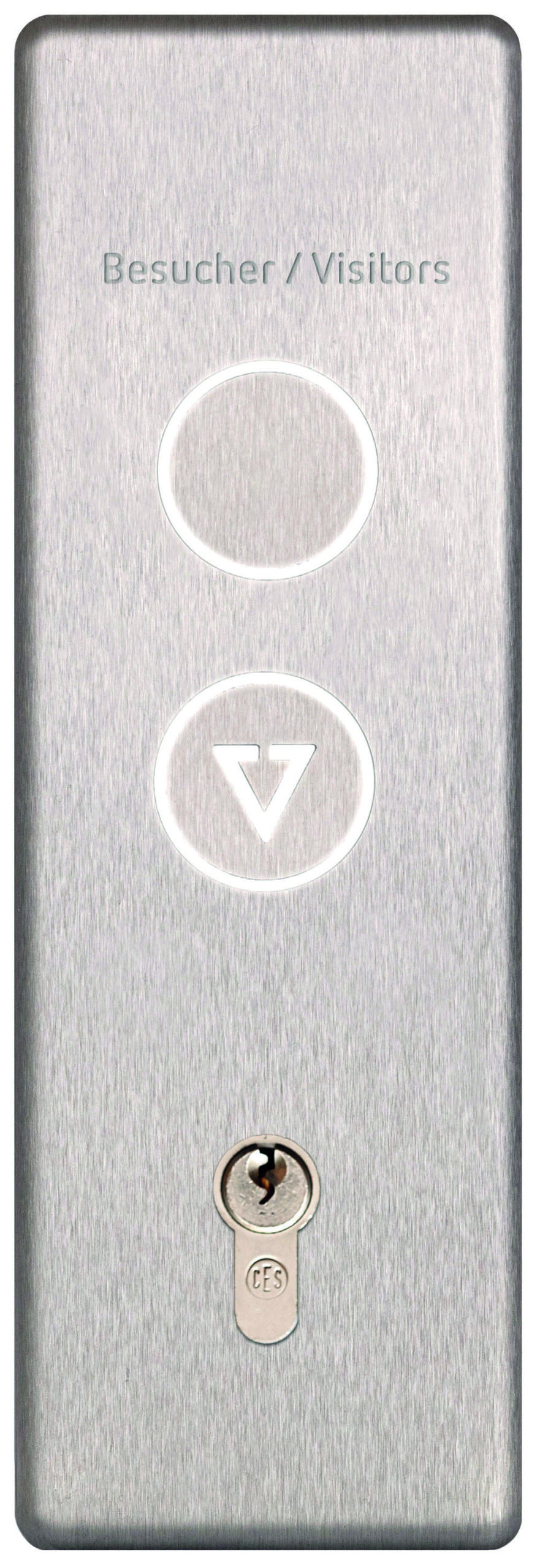

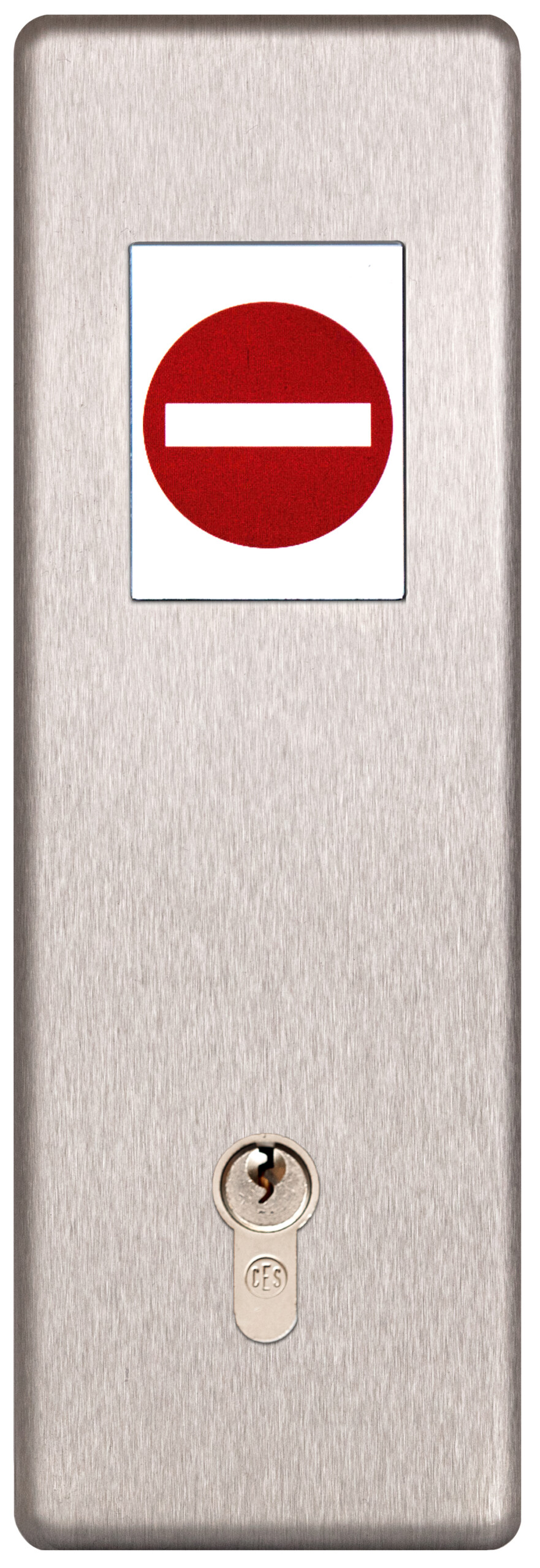

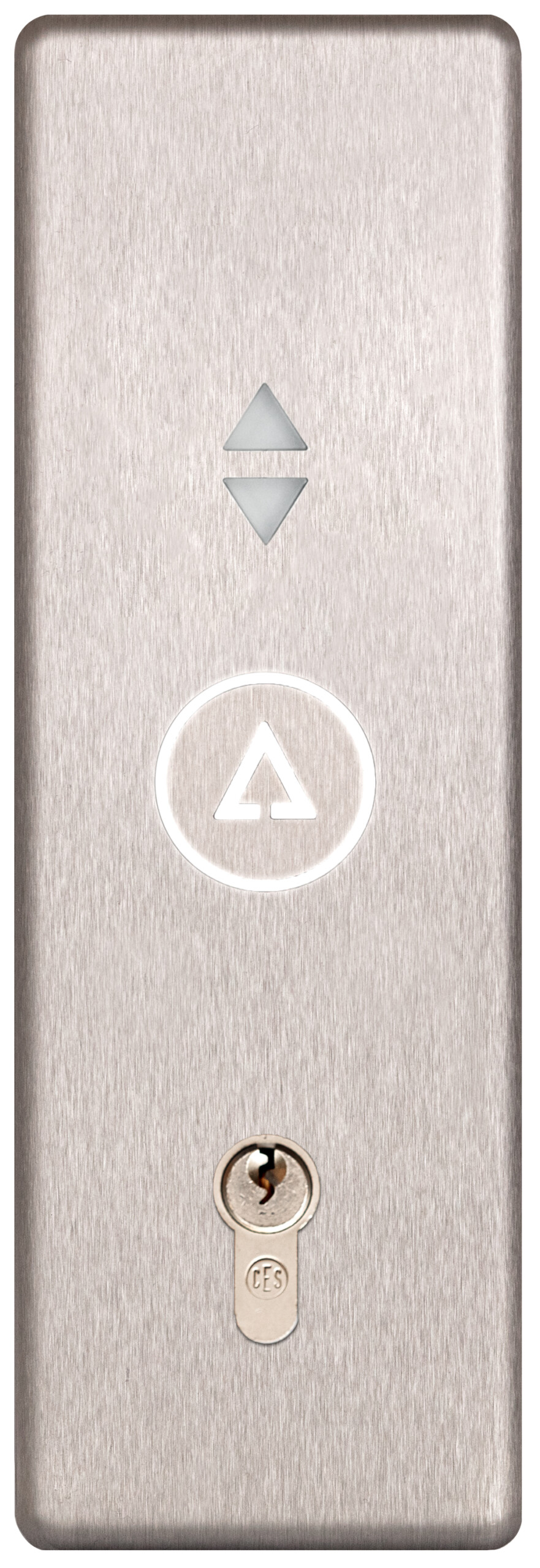

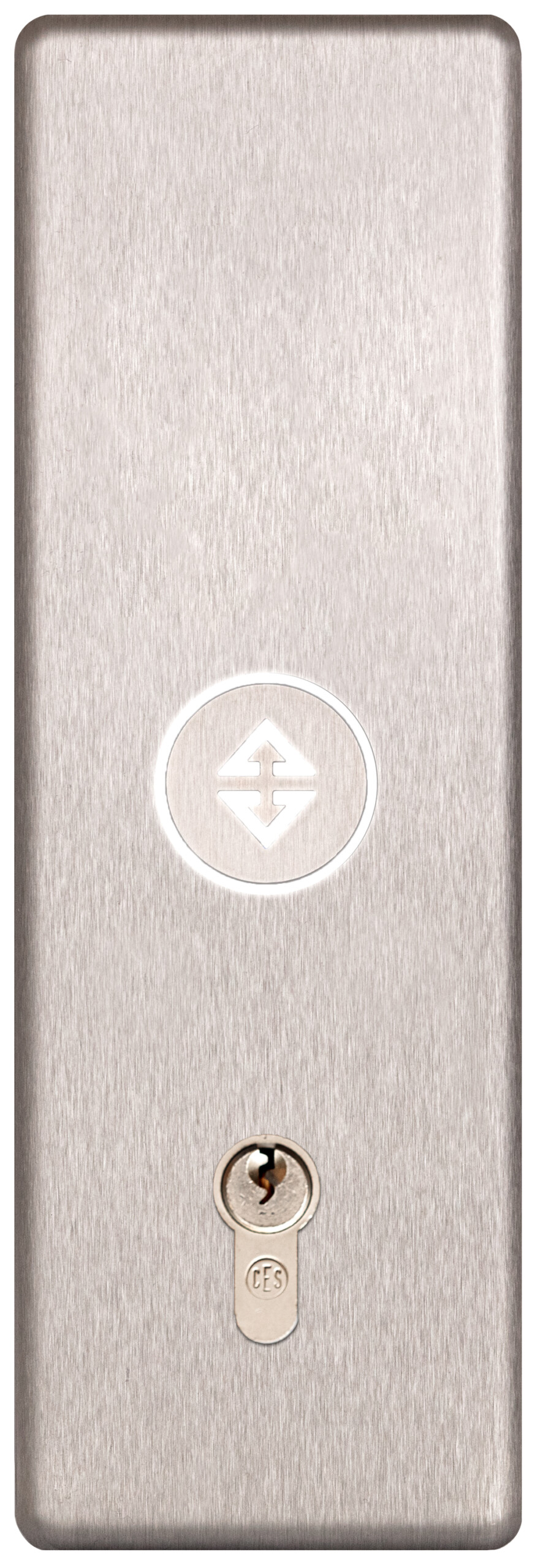

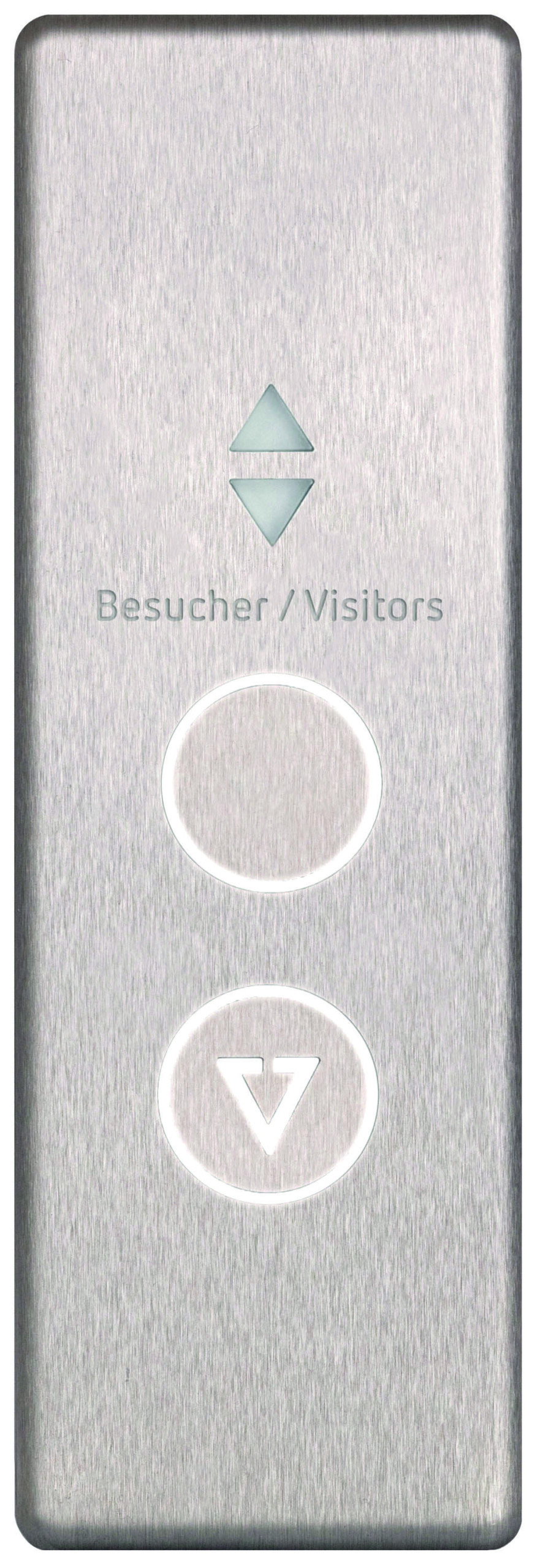

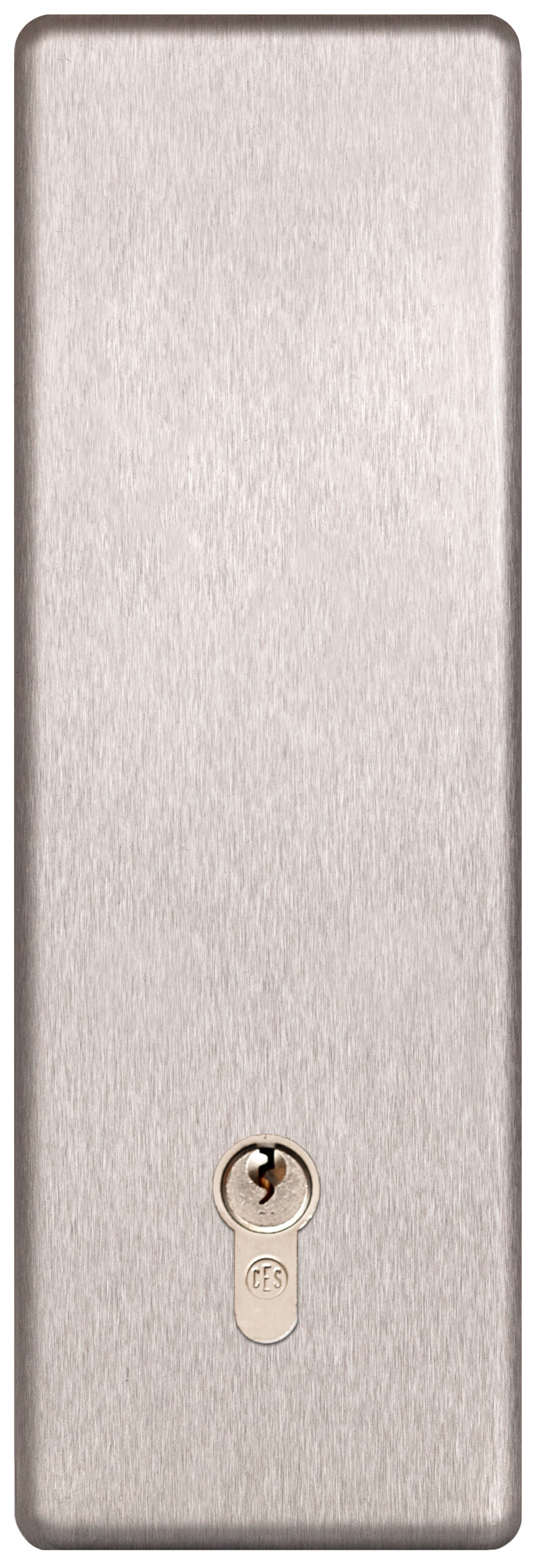

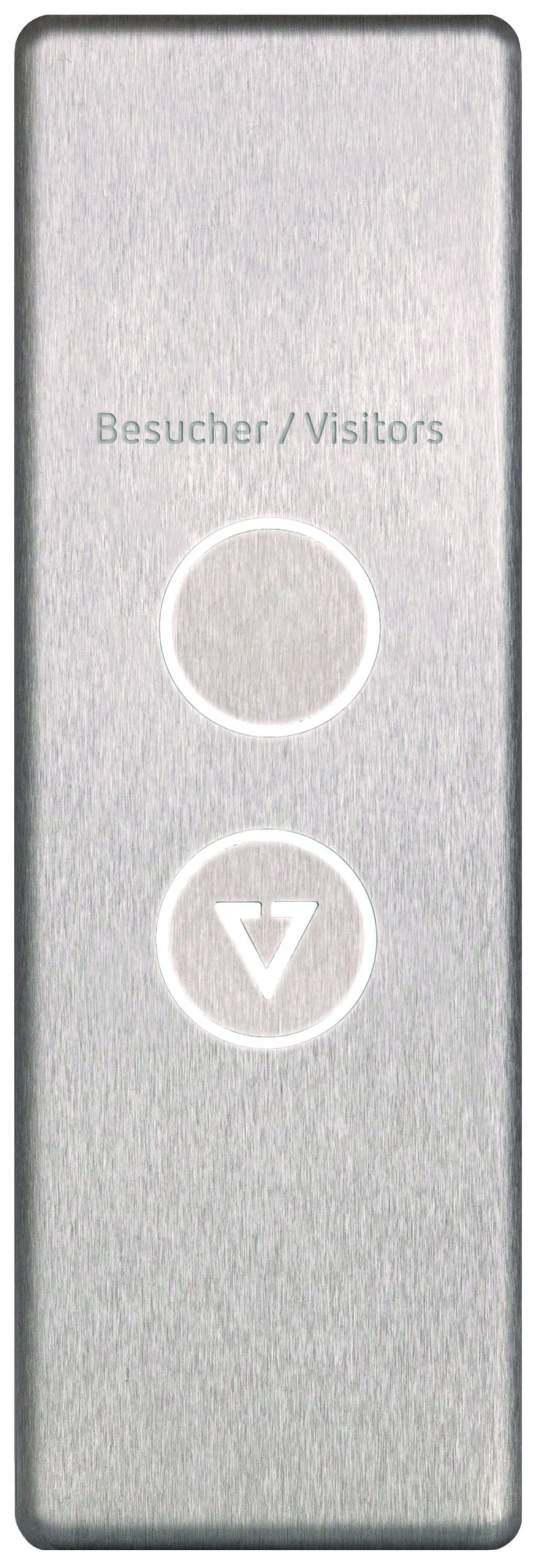

Key switch	Flush-mounted, spring-loaded and removable key switches or key switch for fire mode, fire recall, priority "out of order" with and without reset as well as penthouse control in top floor

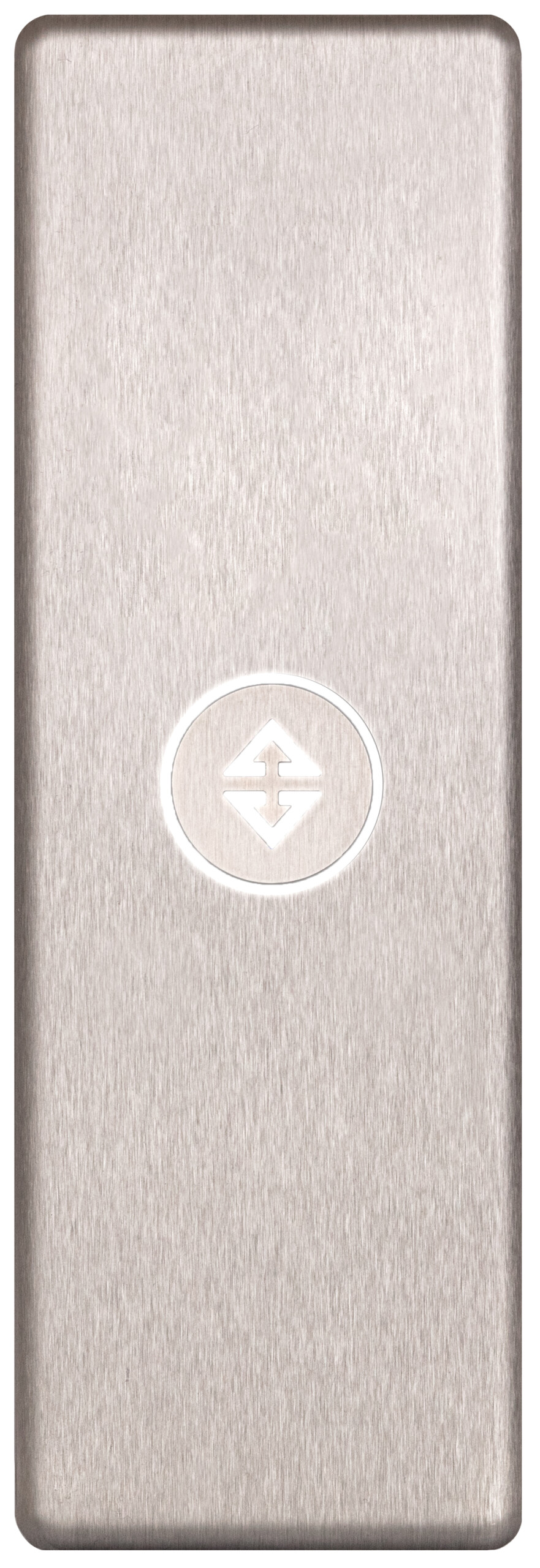

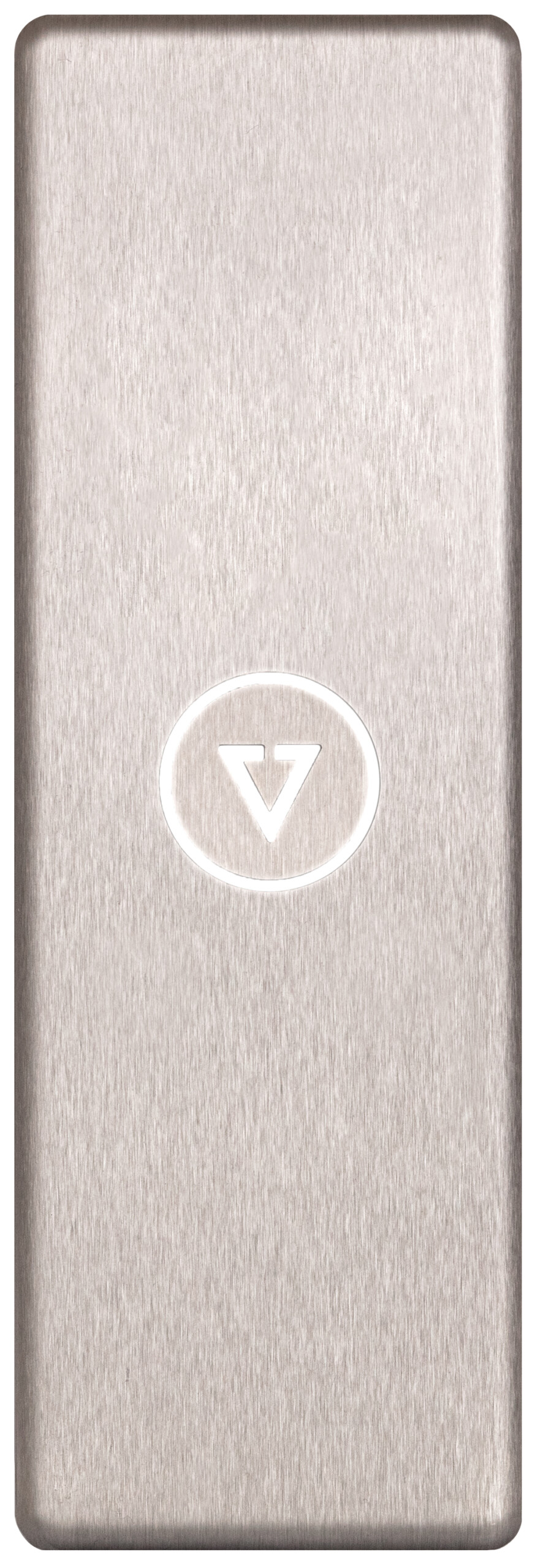

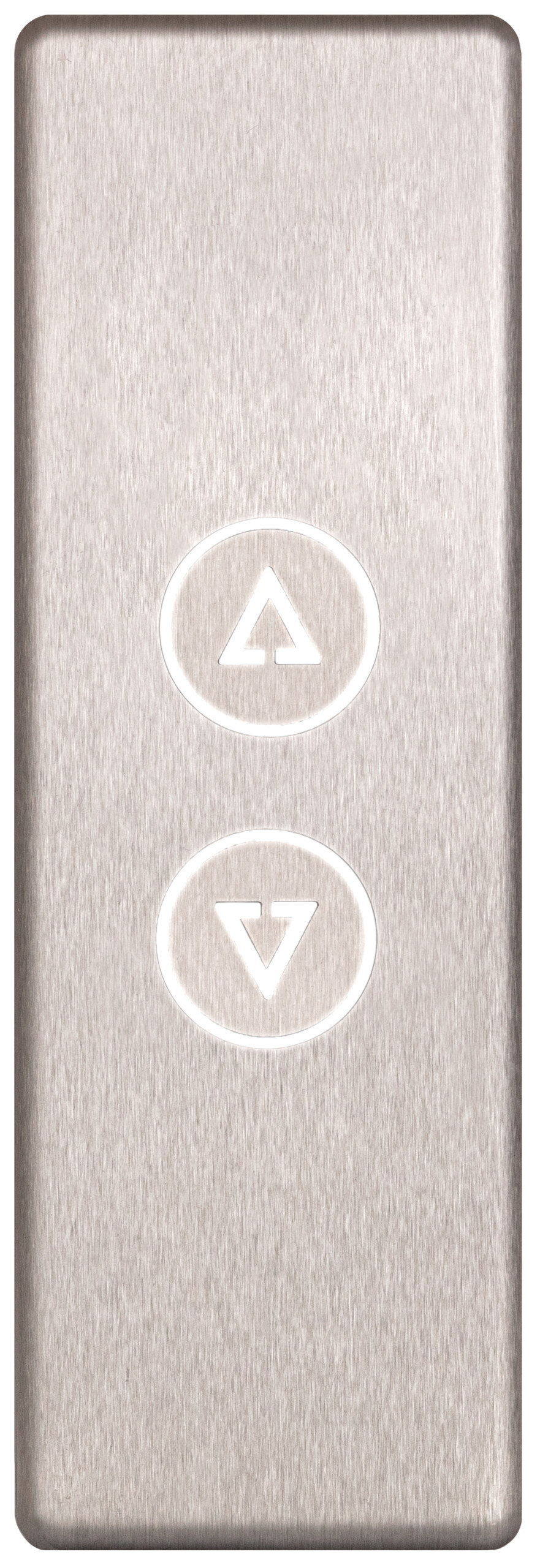

Push button	Button white illuminated with acknowledgement in red, green blue or violet and acoustic call acceptance

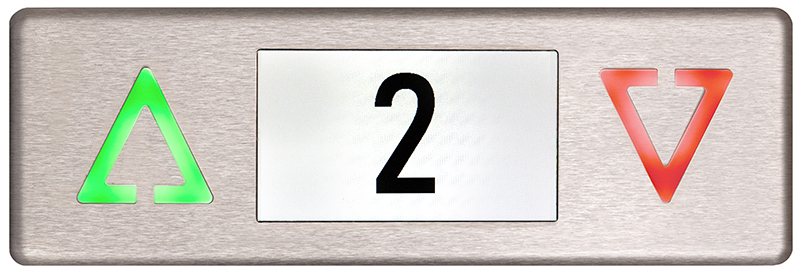

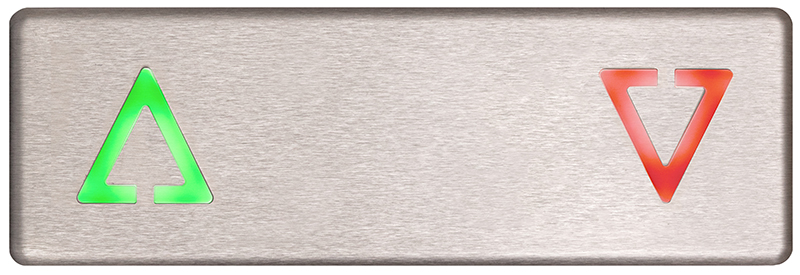

Direction indicator	Integrated illuminated arrows in up and down direction

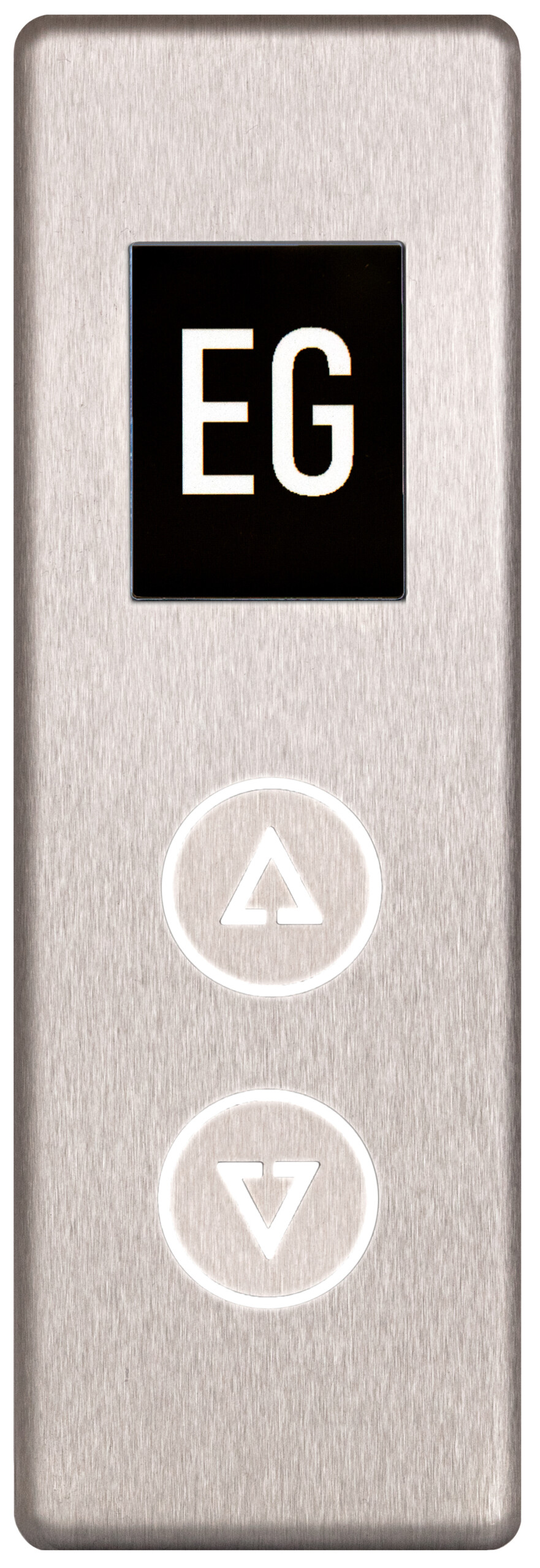

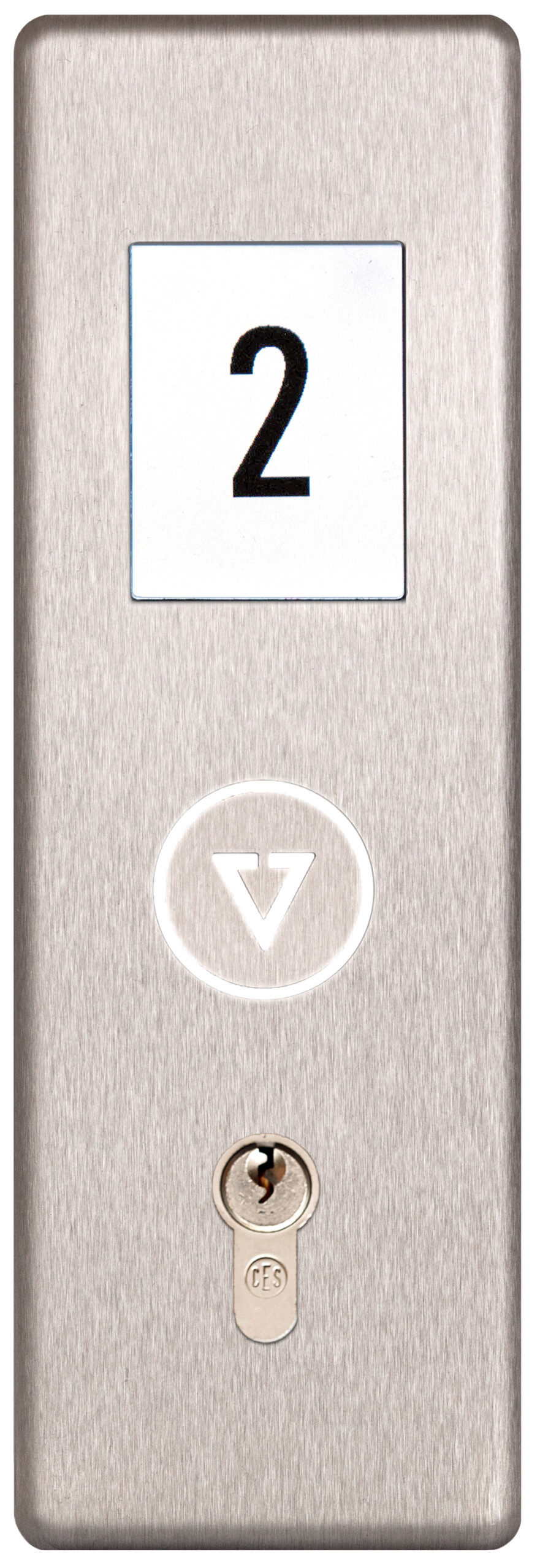

Integrated display	2.8" TFT display (black on white, white on black, white on blue)

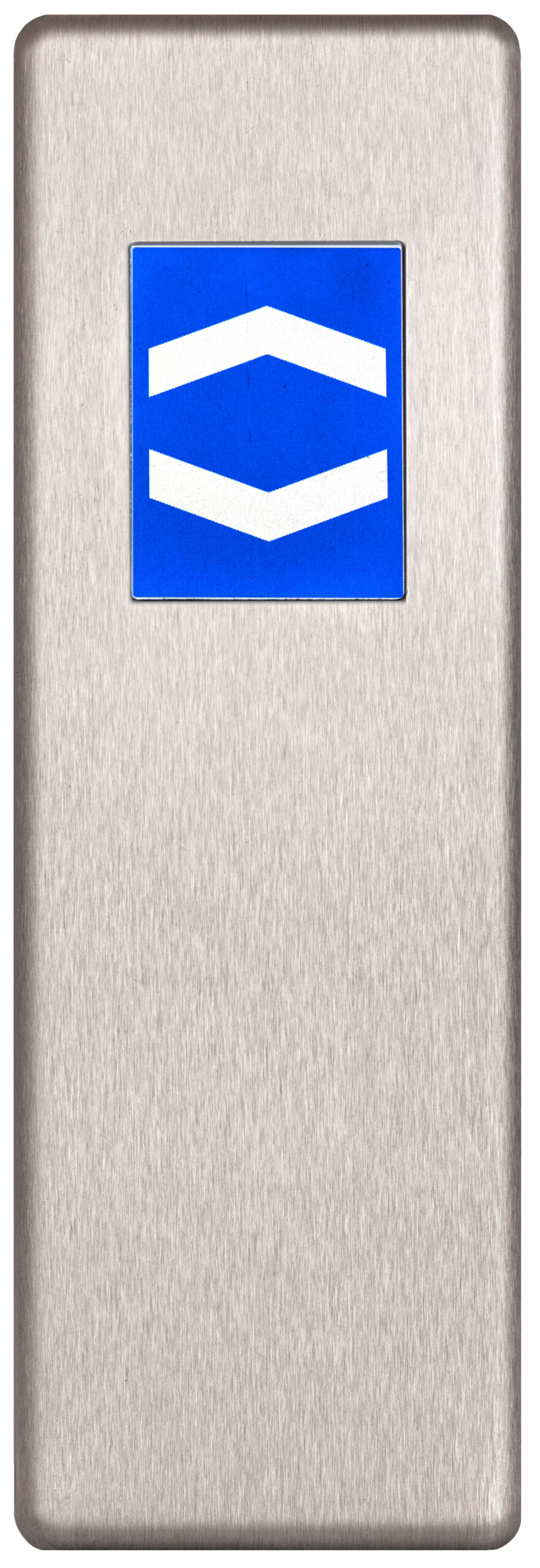

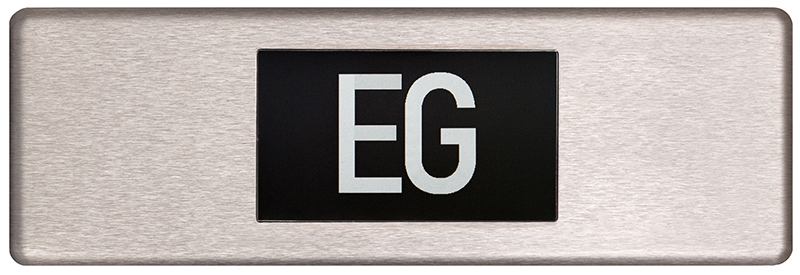

Separate display	4.3" TFT display (black on white, white on black, white on blue)
Fire warning	Print: "DO NOT USE ELEVATOR IN CASE OF FIRE"
fire-related pictogram according to EN 81-733	als Druck	in TFT-Anzeige
